Database Systems: A Simplified Analysis

on Data Integration, Data Mapping, Database Management Systems, ETL • October 20th, 2021 • Write for Hevo

In today’s fast-paced world, data is generated from every digital computing device, handheld phone, workstation, server, and so on. This valuable information generated by millions of computing devices helps private, public, and professional enterprises to store, monitor and analyze data for different purposes. The systems that cater to these services are called Database Systems.

The majority of market-leading companies are deploying Big Data technologies with IoT infrastructure to experience Real-Time data processing and analytics. Real-Time data processing enables enterprises to provide valuable and useful customer experience or satisfaction. On the other side, companies who invest in analytics gain a competitive advantage in the business marketplace, as predicted by Gartner.

When data is stored in Database Systems, it can be stored in any format. Data can be presented in either a structured or unstructured format. The complex combination of structured and unstructured data sets is known as Big Data. Due to the 3V’s (Volume, Velocity, Variety) of Big Data, traditional technologies and methods can’t be used to analyze them. Database Systems have been developed to address the issues of Big Data also.

This article elaborates on the concept of Database Systems, discusses its characteristics, talks about the various languages; Databases use and also explains the types of Database Systems. Read along to understand how Database Systems work.

Table of Contents

What is Database Systems or DBMS

The software that cater to the collection of electronic and digital records to extract useful information and store that information are known as Database Systems/ Database Management Systems or DBMS. The purpose of a standard Database is to store and retrieve data. Databases, such as Standard Relational Databases, are specifically designed to store and process structured data.

Generally, Databases have a table to store data, they use Structured Query Language (SQL) to access the data from these tables. Databases and Database Systems play a vital role in processing hard, fast and diverse datasets. Without a Database Management System, businesses won’t receive valuable insights and deep analytics.

In the Database environment, data is accessed, modified, controlled, and then presented into a well-organized form, allowing the business corporations to execute multiple data-processing operations. The data is usually organized in the form of rows and columns to minimize the workload pressure and achieve accurate results instantly. Different types of data that can be stored, processed or retrieved in Database Management System include numerical, time series, textual and binary data.

The figure below highlights how Database Systems are used to monitor and collect data from multiple sources to gather valuable business insights from them:

Database Systems Diagram
https://www.bmc.com/blogs/dbms-database-management-systems/

Simplify the ETL process with Hevo’s No-code Data Pipelines

Hevo Data, a No-code Data Pipeline helps to load data from any data source such as Databases, SaaS applications, Cloud Storage, SDK,s, and Streaming Services and simplifies the ETL process. It supports 100+ data sources and is a 3-step process by just selecting the data source, providing valid credentials, and choosing the destination. Hevo not only loads the data onto the desired Data Warehouse but also enriches the data and transforms it into an analysis-ready form without having to write a single line of code.

Its completely automated pipeline offers data to be delivered in Real-Time without any loss from source to destination. Its fault-tolerant and scalable architecture ensure that the data is handled in a secure, consistent manner with zero data loss and supports different forms of data. The solutions provided are consistent and work with different BI tools as well.

Check out why Hevo is the Best:

  • Secure: Hevo has a fault-tolerant architecture that ensures that the data is handled in a secure, consistent manner with zero data loss.
  • Schema Management: Hevo takes away the tedious task of schema management & automatically detects the schema of incoming data and maps it to the destination schema.
  • Minimal Learning: Hevo, with its simple and interactive UI, is extremely simple for new customers to work on and perform operations.
  • Hevo Is Built To Scale: As the number of sources and the volume of your data grows, Hevo scales horizontally, handling millions of records per minute with very little latency.
  • Incremental Data Load: Hevo allows the transfer of data that has been modified in Real-Time. This ensures efficient utilization of bandwidth on both ends.
  • Live Support: The Hevo team is available round the clock to extend exceptional support to its customers through chat, email, and support calls.
  • Live Monitoring: Hevo allows you to monitor the data flow and check where your data is at a particular point in time.

Simplify your Data Analysis with Hevo today! Sign up here for a 14-day free trial!

9 Key Characteristics of Database Systems

Database Systems have many characteristics that make them suitable to handle multiple data sources and also help in Data Analytics to gather valuable business insights. The key characteristics of Database Systems are given below:

1) Less Duplication

Database Systems provides a specific identity number for each entry. By having a specific ID number for all entries, users won’t experience duplication errors and issues.

2) Limited Redundancy

Undoubtedly, there are high chances of data repetition as multiple users use the same version/ software of a Database to store their files. To avoid large chances of redundancy, a DBMS offers a single data repository and various Data Mapping functionalities.

3) Ease of Use

There’s no need to get noble experience or technical skills to use a DBMS. The reason is all these tools contain a smooth and easy-to-use interface. Whether you’re familiar with programming languages or not, you can easily use queries to insert, update, delete or search records in Database Systems.

4) Multiple Layouts and Presentations

Database Systems has different layouts and presentation formats through which one can easily select knowledge and language options, according to his/her expertise. Some Databases contain translating options that allow you to move from one layout to another without making any change in the integrity of data.

5) Reduces Storage Space

Public and private companies use Database Systems to save a massive amount of data, files, documents, media, audio and video extensions. Companies need a lot of space to store these assets, but DBMS provides proper integration, helping users to reduce space as compared to traditional systems. This functionality permits enterprises to save cost as well.

6) Data Security

Security of data is the foremost and essential need for companies as hacking is common in this digital world. DBMS is accessible to all users, employees, clients, thus different policies, and rules must be implemented to restrict multiple windows. While keeping this in mind, Database Systems are built with tenacious security functions that allow companies to protect confidential information. Enterprises deploy policies to restrict access for particular users, letting them minimize security breaches and insiders attacks.

7) Data Recovery and Backup Plan

Nowadays, Database Systems are coming up with data recovery and backup options. Companies know that intentional and unintentional events can occur at any time. For instance, in some cases employees remove data accidentally, developers delete or discard manufacturing and production tables. Consequently, DBMS are embedded with Data Recovery options and a Backup Plan to avoid such incidents. They work like a permanent storage plan in which it is impossible to eradicate data.

8) Maintaining Integrity

Database Systems contain schemas, primary and secondary key options that permit companies, especially E-Commerce and inventory stores, to maintain integrity, consistency and concurrency of data.

9) Improvised Efficiency

With functions and tools of DBMS, raw information gets converted into valuable statistics. Companies use these statistics to make a wise and quick decision in a Real-Time environment. It advances the Database’s performance and efficiency of the system.

In order to learn more about the features/characteristics of Database Systems, click this link.

Languages Supported by Database Systems

Database Systems comprise of specific languages that are used by operators, programmers and end-users to interact with Database queries and updates. There are generally 4 types of Database Languages:

1) Data Definition Language (DDL)

It is also called Data Description Language and is used to describe data structures, create and modify data. SQL commands and statements like Create, Alter, Drop, Truncate, Rename, and Comment are used to form the pattern of the Database.

2) Data Control Language (DCL)

DCL commands include Revoke and Grant used to retrieve previously stored and saved data. The syntax of DCL commands is similar to programming languages. These statements play an essential role to describe the ‘‘Rights & Permissions’’ across the Database system.

3) Data Manipulation Language (DML)

DML commands include Select, Insert, Update, Delete, Merge and Call. These are used to access and manipulate data in the Database. These statements are commonly meant for handling user requests.

4) Transactional Control Language (TCL)

TCL is used to handle all the transactions within Database Systems. TCL commands include Commit, Rollback and SavePoint.

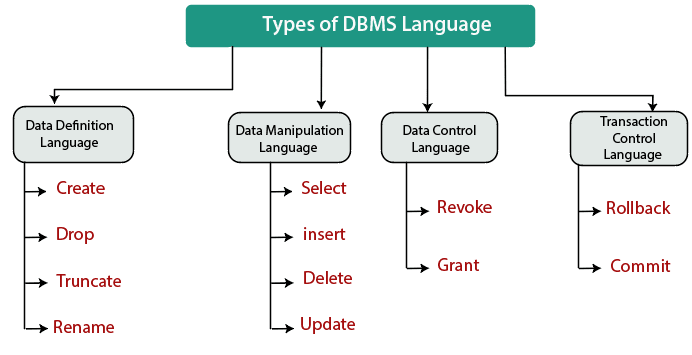

The figure below depicts all the languages in a DBMS along with their commands:

DBMS Language Types and their Commands
Images Source

Types of Database Systems

There are 4 mainly types of Database Systems:

Hierarchical Database System

The Hierarchical Database System follows a tree-like procedure to present the data. It arranges data in either Top-Down or Down-Up flow and defines the flow through the parent-child relationship. The Hierarchical Database System includes two types of relationships; One-to-One and One-to-Many relationship. A parent can have only one child in a One-to-One relationship, whereas a parent can have more than one child in a One-to-Many relationship.

Some of the popular Hierarchical Database Systems include IBM Information Management Systems (IMS), Windows Registry, RDM Mobile, XML and XAML.

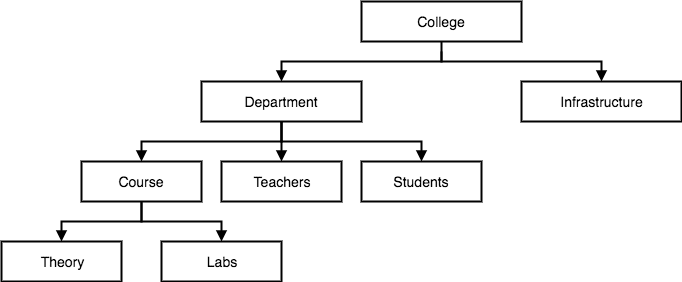

The figure below depicts the Hierarchical Database System:

Hierarchical Database System Model
Image Source

2) Network Database System

The Network Database System enables users to build Many-to-Many relationships due to which it is more complicated and intricated than the other types of DBMS. It is feasible for users to access data from the Network Database System as data is arranged in a graphical format and can be acquired through different data routes. By having a Many-to-Many relationship, a child can have more than one parent and vice versa. In this way, multiple relationships can be built in a Network Database System, permitting enterprises to achieve efficiency.

Some of the popular Network Database Systems include Integrated Database Management System (IDMS), Raima Database Manager, TurboIMAGE, Integrated Data Store (IDS) and Univac DMS-1100.

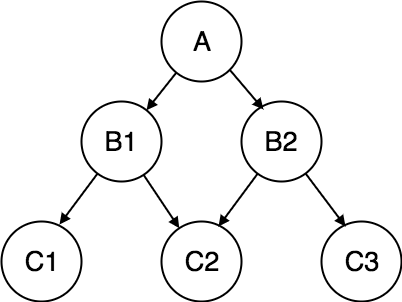

The given figure below depicts the Network Database System:

Network Database System Model
Image Source

3) Relational Database System

In the Database field, the Relational Database System is one of the most extensive and complicated ones. It allows developers and programmers to normalize data and organize information as rationally independent tables. Connections are made by using ‘‘Select’’ and ‘‘Join’’ options. The concept of referential integrity is used in Relational Database Systems to preserve the reliability of the connection between different tables.

Some of the popular Relational Database Systems include DB2 and Informix Dynamic Server, Microsoft Access & SQL Server, RDB and Oracle.

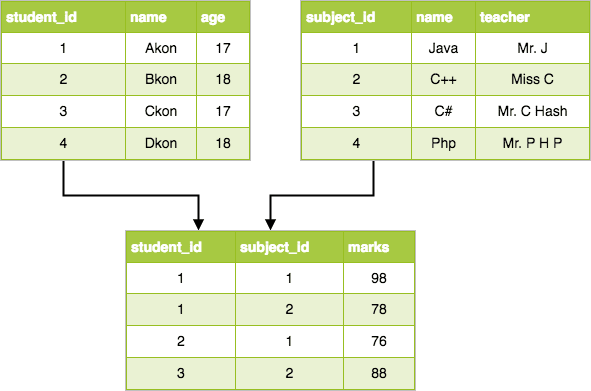

The figure below depicts the Relational Database System:

Relational Database System Model
Image Source

4) Object-Oriented Database System

In an Object-Oriented Database System, diverse programming languages, such as Perl, Scala, .NET, Java, Python, JavaScript, Delphi, Visual Basic and C++, are used by programmers to build relationships between variables and establish schemas.

Some of the popular Object-Oriented Database Systems include Cache, ConceptBase.cc, Db4o (Database 4 objects).

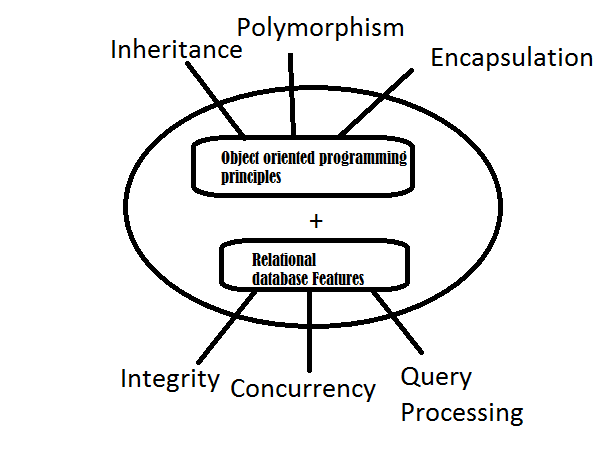

The figure below depicts the Object-Oriented Database System:

Object Oriented Database Model
Image Source

Advantages of Database Systems

Now that have understood about Database Systems, different languages it supports and types of Database Systems. In this section, you will read about the advantages of Database Systems. A few benefits of Database Systems are listed below:

  • Data Safety: As the number of users accessing the Database increases, the threats to data breaches increase. Database Systems ensure data confidentiality and safety through controlled user access.
  • Improves Efficiency: Using better-streamlined software to access data that can convert data into valuable information for analysis helps companies make better data-driven business decisions.
  • Data Sharing: Database Systems or DBMS allow users to easily share data, whether it’s available on On-premise Database or remote users by following the correct authorization protocols. It provides well-managed data to get faster query responses.
  • Data Integration: Data Systems support many integrations and provide users a holistic view of the data. It also helps users to know how different activities affect other activities and monitor the progress of the company’s activities.
  • Better Decision Making: Database Systems keeps the data in a well-managed form which makes

Applications of Database Systems

Let’s go through some of the most common applications of Database Systems or DBMS. A few applications are listed below:

  • Telecommunication: Databases Systems store all the data related to monthly bills, call archives, user information, retaining balances, subscription packages, and other details.
  • Sales and Marketing: Companies store all the user information, Sales details, prospects, leads, and information on Marketing Campaigns in Database Systems.
  • Airlines: All the information on flight bookings, payments, customers, offers, destination, and the venue is stored in Databases.
  • Human Resources: Database Systems store and manage all the data related to salary, employees, departments, finances, deductions, and other confidential information.
  • Banks: DBMS stores all the data related to clients and their bank accounts, deposit and withdrawal, credits, and mortgages.
  • Education: Student’s details, records, marks, achievements, courses, and other details are managed in Database Systems.
  • Economics and Finance: Database Systems store all the data on transactions, bonds, fiscal instruments such as shares.

Conclusion

This article gave an in-depth knowledge of Database Systems that can be used by companies to set up the procedure and handle the business requirements in a smooth fashion. Sectors, such as banks, telecom companies, airlines, sales & marketing, educational institutions, industrial and civil departments, use DBMS for storing, keeping, and maintaining records. Companies extract information from these different resources, and then use Big Data tools along with the Database Systems to acquire useful insights.

Overall, Database Systems are used by every type of organisation and their applications are endless. Having a proper Database architecture will ensure that users gain valuable business insight throughout the company.

In case you want to integrate data into your desired Database/destination, then Hevo Data is the right choice for you! It will help simplify the ETL and management process of both the data sources and the data destinations.

Want to take Hevo for a spin? Sign up here for a 14-day free trial and experience the feature-rich Hevo suite first hand.

Share your experience of understanding Database Systems in the comments section below!
