pgAdmin Backup Database in PostgreSQL Simplified 101

on Data Backup, Database Management Systems, pgAdmin, PostgreSQL, Relational Database, Tutorials • February 15th, 2022 • Write for Hevo

pgAdmin Backup Database

Databases are the most common storage space that organizations and individuals use to store their business data and use it for further research and Analytics. Organizations know the value of data and it is essential to keep the data safe by creating regular backups so that the data can be restored at times of system failure or data loss from the primary Database.

PostgreSQL is a widely used Database Management System for storing structured as well as unstructured data. Companies use it because it offers them to store flexible data with ease. PostgreSQL offers pgAdmin Backup Database services that allow companies to maintain a backup of their data and avoid any data loss in the future.

pgAdmin Backup Database makes it easier for users to easily maintain the backup and restore functionalities in PostgreSQL. In this article, you will learn how to install PostgreSQL using pgAdmin, the steps for pgAdmin Backup Database in PostgreSQL, and how to restore the created pgAdmin Backup Database of PostgreSQL.

Table of Contents

What is PostgreSQL?

pgAdmin Backup Database - PostgreSQL logo
Image Source

PostgreSQL, pronounced “Post-GRES,” is an open-source database with a high reputation for dependability, flexibility, and open technical standards support. For flexibility and SQL compliance, unlike most other RDMBS (Relational Database Management Systems), PostgreSQL supports both SQL and JSON for relational and non-relational queries. As a result, it is among the most compliant, stable, and mature relational databases currently accessible. PostgreSQL is a “one-size-fits-all” solution for many businesses searching for cost-effective and efficient solutions that improve their database management systems due to its adaptable and approachable design.

Many web apps, along with mobile and analytics applications, use PostgreSQL as their primary database. PostgreSQL is a relational database system that is advanced, enterprise-class, and open-source. PostgreSQL. PostgreSQL is an extremely reliable database that has been developed by the open-source community for over 20 years. Many companies like  Apple, Fujitsu, Red Hat, Cisco, Juniper Network, and Instagram have created PostgreSQL-based products and solutions.

PostgreSQL is a Relational Database Management System that organizes data into rows, with columns representing various data properties. A table is a collection of connected rows. The most frequent database type is the relational database. It distinguishes itself by emphasizing integrations and extensibility. It is extendable since it interacts with a variety of other technologies and adheres to numerous database standards.

Key Features of PostgreSQL

When adopting PostgreSQL in enterprise database deployments, developers gain a variety of advantages. PostgreSQL has a wealth of capabilities and extensions that allow you to develop extremely scalable and easy-to-manage databases while maintaining flawless replication and concurrency among multiple computer environments. A few key features are listed below.

  • Recovery from a Single Point in Time: When performing data recovery initiatives, PostgreSQL allows developers to use PITR (Point-In-Time Recovery) for the restoration of databases to a fixed moment in time.
  • Reliable: PostgreSQL supports write-ahead logging, synchronous, asynchronous, and logical replication to avoid data loss during a disaster.
  • Procedures Kept on File: Developers can design new subroutines called stored procedures using PostgreSQL’s built-in support for numerous procedural languages. Procedural languages can be used to develop in a variety of other programming languages, including Perl, Python, JavaScript, and Ruby, thanks to extensions.

To know more about PostgreSQL, click here.

Simplify Data Analysis with Hevo’s No-code Data Pipeline

Hevo Data, a No-code Data Pipeline helps to load data from any data source such as PostgreSQL, SaaS applications, Cloud Storage, SDK,s, and Streaming Services and simplifies the ETL process. It supports 100+ data sources (including 30+ free data sources) and is a 3-step process by just selecting the data source, providing valid credentials, and choosing the destination. Hevo not only loads the data onto the desired Data Warehouse/destination but also enriches the data and transforms it into an analysis-ready form without having to write a single line of code.

Get Started with Hevo for Free

Its completely automated pipeline offers data to be delivered in real-time without any loss from source to destination. Its fault-tolerant and scalable architecture ensure that the data is handled in a secure, consistent manner with zero data loss and supports different forms of data. The solutions provided are consistent and work with different BI tools as well.

Check out why Hevo is the Best:

  1. Secure: Hevo has a fault-tolerant architecture that ensures that the data is handled in a secure, consistent manner with zero data loss.
  2. Schema Management: Hevo takes away the tedious task of schema management & automatically detects the schema of incoming data and maps it to the destination schema.
  3. Minimal Learning: Hevo, with its simple and interactive UI, is extremely simple for new customers to work on and perform operations.
  4. Hevo Is Built To Scale: As the number of sources and the volume of your data grows, Hevo scales horizontally, handling millions of records per minute with very little latency.
  5. Incremental Data Load: Hevo allows the transfer of data that has been modified in real-time. This ensures efficient utilization of bandwidth on both ends.
  6. Live Support: The Hevo team is available round the clock to extend exceptional support to its customers through chat, E-Mail, and support calls.
  7. Live Monitoring: Hevo allows you to monitor the data flow and check where your data is at a particular point in time.
Sign up here for a 14-Day Free Trial!

Steps to Install PostgreSQL

In this section, you will learn how to install PostgreSQL and set up the server to start working with the Database and query data using pgAdmin. The following to install PostgreSQL are listed below.

Step 1: Open the pgAdmin Program

We’ll start by launching the pgAdmin application. To do so, type pgAdmin into our system’s search box. The pgAdmin application will run in the web browser after you click on it, as shown in the figure.

Step 2: Set Up a Server

Then, as seen in the figure below, right-click on the Servers node and pick the Build Server menu to create a server:

pgAdmin Backup Database - creating server
Image Source: Self

Step 3: Give the Server’s Name.

After clicking the Server option, the Create-Server window will appear, prompting us to type the server name in the Name field, such as PostgreSQL001, as seen below:

pgAdmin Backup Database - server name
Image Source: Self

Step 4: Give the Hostname and Password

We’ll input the credentials of the host and password for the Postgres user after clicking the Connection tab, and then click the Save button. You can expand the server by clicking on the Servers node.

pgAdmin Backup Database - connections
Image Source: Self

Step 5: Activate the Query Tool

Now, we’ll use the query tool by clicking Tool Query Tool from the menu bar, or by clicking the query tool icon next to Browser, as seen in the image below.

Step 6: In the Query Editor, Type the Command

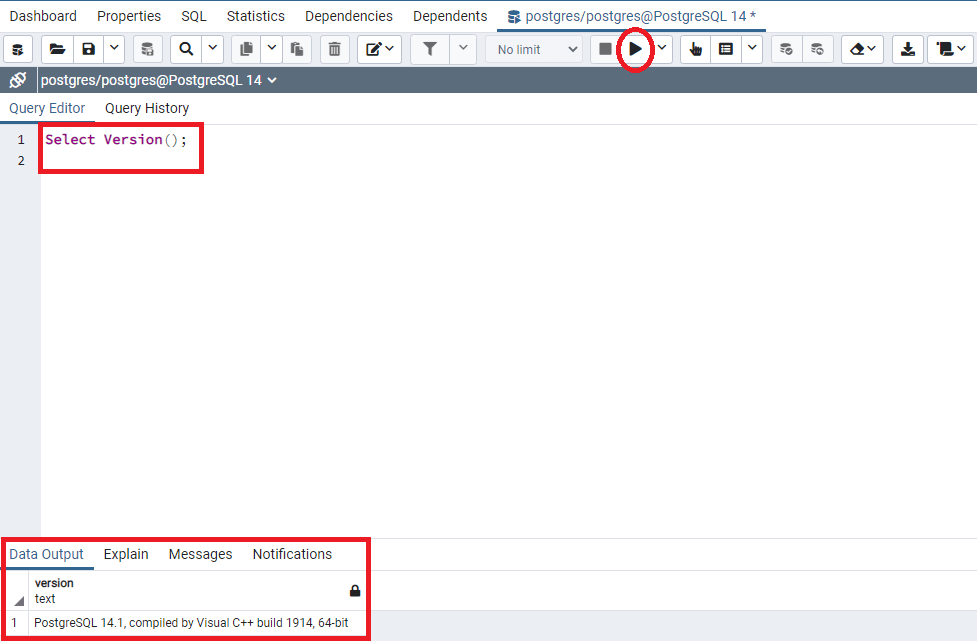

After successfully opening the query tool, we’ll type the following command into the Query Editor and press the Execute button.

Select Version();

And, after running the aforesaid command, we’ll see the Data output of the Provided command, which shows all of the details about the PostgreSQL version currently in use, as shown in the image below:

pgAdmin Backup Database - version check
Image Source: Self

After learning how to connect to a PostgreSQL Database Server using pgAdmin4, we’ll learn how to connect to a PostgreSQL Database Server using SQL Shell (psql).

Step 7: Connecting Database with pgAdmin

  • Using pgAdmin, connect to your RDS for the PostgreSQL DB instance.
  • On your client system, launch the pgAdmin application.
  • Select Add New Server from the Dashboard menu.
  • On the General tab of the Create-Server dialogue box, type a name for the server in pgAdmin.
pgAdmin Backup Database - server name
Image Source: Self
  • Fill in the following details from your database instance on the Connection tab:
    • Fill in the Host field.
    • Type the specified port in the Port field.
    • If you changed the master username’ from the default, Postgres, type the user name you supplied when you established the DB instance in Username.
    • In the Password field, type the password you used to create the DB instance.
pgAdmin Backup Database - connections
Image Source: Self
  • Then select the Save button.
  •  If you’re having trouble connecting to your RDS for the PostgreSQL instance, read Troubleshooting connections to your RDS for the PostgreSQL instance.
  • Expand Servers, the DB instance, and Databases in the pgAdmin browser to access a database. Select the database name for the DB instance.
pgAdmin Backup Database - backup
Image Source: Self
  • Select Tools, Query Tool to open a window where you may type SQL commands.
pgAdmin Backup Database - overall
Image Source: Self

Steps to pgAdmin Backup Database in PostgreSQL

Database backups are necessary to ensure that your data is always safe and secure. Backups aid in the recovery of computer devices in the event of a disaster, as well as the recovery of data after files, have been damaged or deleted.

Database backups are critical for avoiding data loss, which can entirely shut down a company’s activities. pgAdmin Backup Database makes it easier for companies to manage their data backup in PostgreSQL. The following steps to perform the pgAdmin Backup Database are listed below.

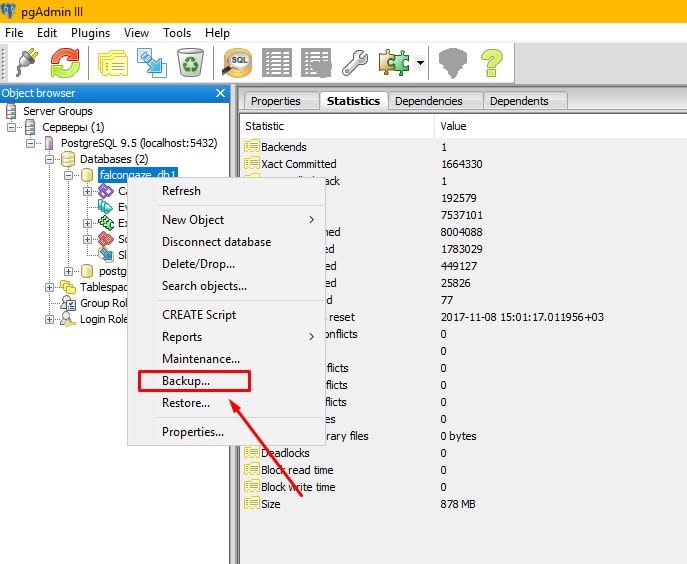

  • Locate the database that needs to be backed up (to create a backup). You must choose ‘make backup‘ from the context menu.
pgAdmin Backup Database - Backup
Image Source
  • Specify a backup folder here for pgAdmin Backup Database. As the format, choose “Catalog“.
pgAdmin Backup Database - Catalog
Image Source
  • Remove the extension from the file name to create a catalog. Another key element to remember is that the catalog should not end with a “,” for the pgAdmin Backup Database file name as shown in the image below.
Image Source
  • No other selections are required. Wait after clicking the “Backup” button. It may appear like pgAdmin has hung up while creating a backup, but this is not the case. Because the pgAdmin Backup Database with collected data is typically fairly large, the backup process usually takes a few hours.

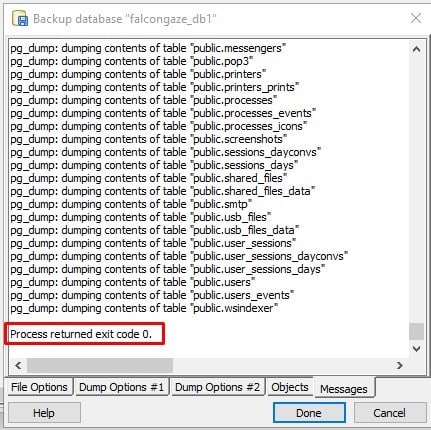

  • It all relies on the size of the database and the computer’s specifications. The message “Process returned exit code 0” will appear if the pgAdmin Backup Database was successful.
Image Source

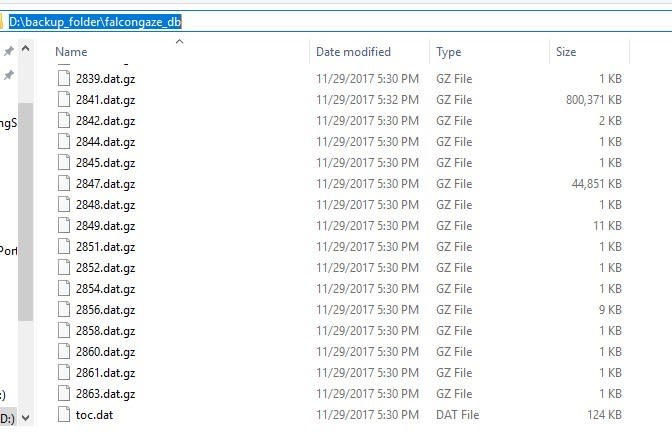

  • This is how the catalog looks with the pgAdmin Backup Database.
Image Source

Steps to Restore Database Using pgAdmin

pgAdmin restore is a utility that allows you to restore a PostgreSQL database from a non-plain-text archive produced by pg dump. It will execute the procedures required to restore the database to the format it was in when it was stored. pgAdmin is a handy and user-friendly tool with a graphical interface.

So, the pgAdmin Backup Database tool makes the restoring task easy for all kinds of users. Let’s look at how we may use pgAdmin to recover a database from a SQL file today. The following steps to how to restore created pgAdmin Backup Database are listed below.

  • First, we make a comprehensive database backup in the form of a SQL file.
Image Source

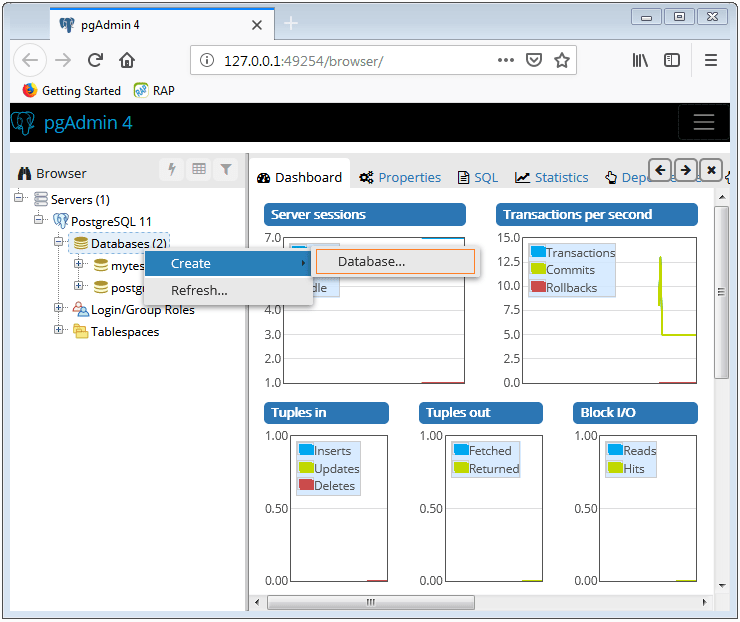

  • Next, we establish a new database via the pgAdmin Backup Database and Restore tool to restore the SQL file.
  • The newly formed database will now appear in the list. As a result, we right-click the database and choose Restore.
Image Source
  • A new window appears, with two tabs labeled “General” and “Restore” choices. Click the Restore button after finding suitable options under each tab.
Image Source

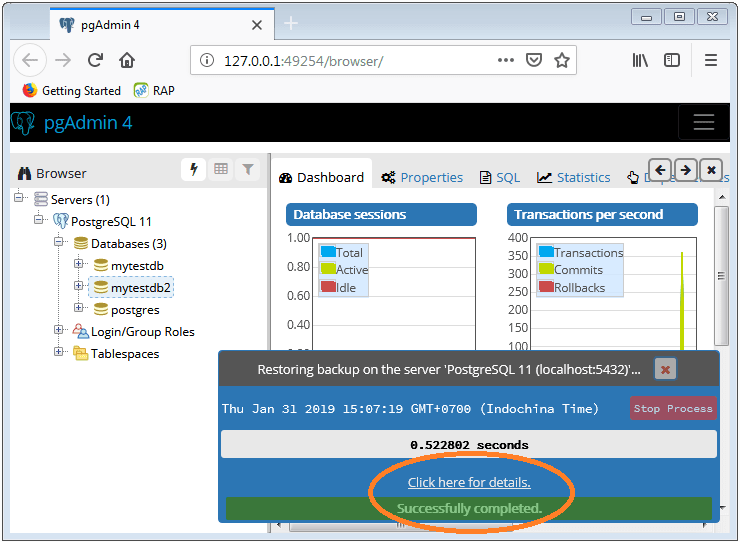

  • A dialogue box appears, informing you of the status of the restore operation. The Process Watcher is launched by clicking the More details tab in the dialogue box.
  • It keeps track of all the steps involved in the restoration procedure. Finally, the window displays a message indicating that the operation was successful.
Image Source

Conclusion

In this article, you learned about PostgreSQL and how to install PostgreSQL using pdAdmin, and what is pgAdmin Backup Database. You also went through the steps to pgAdmin Backup Database in PostgreSQL and how to restore the data using the pgAdmin Backup Database and Restore tool in PostgreSQL Database.

pgAdmin Backup Database is a user-friendly Database Administration tool for backup and restoring services with a graphical interface. As a result, pgAdmin Backup Database simplifies the backup and restoring process for all types of users.
