Understanding Tableau Data Integration Simplified 101

By: Published: November 2, 2021

Understanding Tableau Data Integration

Most companies today leverage Business Intelligence and Data Analysis tools to analyze their customer and business data with the aim of making smarter & informed business decisions and ensuring effective cross-vertical operations. Business Intelligence tools allow organizations to visualize their data in the form of dashboards, enabling them to derive meaningful insights and maximize revenue outcomes. One of the most well-known Business Intelligence tools is Tableau. Using Tableau Integration with other platforms or data sources such as Data Warehouses, CRMs, Ads Platforms, etc. helps companies get useful insights from the data and easily generate reports.

There has been an exponential increase in the use of various Data Analytics and Business Intelligence techniques in most companies. There are a wide variety of tools available in the market that businesses utilize to perform an in-depth analysis of their data in order to plan future Growth, Product, and Marketing strategies.

A significant advantage of using Tableau Integration for most businesses lies in its support for a vast number of connectors. Tableau, to some extent, also provides users the ability to integrate with data sources that are not supported directly by it.

This article will provide you with an in-depth understanding of how Tableau Data Integration works along with how you can import your data into Tableau from various data sources.

Table of Contents

What is Tableau?

Tableau Logo
Image source: https://www.tableau.com/about/media-download-center

Tableau is one of the most powerful and fastest-growing Data Visualization and Business Intelligence tools available in the market. It allows users to seamlessly transform raw data into a visual format that can be understood by anyone.

The various tiers offered by Tableau are as follows:

  • Tableau Desktop
  • Tableau Public
  • Tableau Online
  • Tableau Server
  • Tableau Reader

Tableau is widely used as it allows users to analyze the required data seamlessly. Visualizations in Tableau are generated as Worksheets, Dashboards, and Stories. Users can create custom dashboards that provide actionable insights and help drive the business forward. When configured with the proper underlying hardware and operating systems, all products by Tableau always operate in virtualized environments. Tableau can be used to explore data with limitless visualizations.

More information on Tableau can be found here.

Key Features of Tableau

Some of the key features of Tableau are as follows:

  • Advanced Dashboard: Tableau Dashboards provide an in-depth view of the data using advanced visualizations. Dashboards are considered to be very informative as they support the addition of multiple views and objects. Tableau also allows visualization of data in the form of Stories by giving users a variety of layouts and formats to choose from.
  • In-Memory and Live Data: Tableau ensures seamless connectivity with data extracted from numerous external data sources in the form of In-memory or live data sources. This gives users the ability to analyze data from various data sources without any restrictions.
  • Attractive Visualizations: Tableau gives users the ability to create different types of data visualizations. For example, users can seamlessly create the simplest visualizations such as a Pie Chart or Bar Chart or some of the most complex visualizations such as Bullet Chart, Gantt Chart, Boxplot, etc. Tableau also comes with information on geographical data such as Countries, Cities, Postal Codes, etc. that allows users to build visualizations using informative maps.
  • Robust Security: Tableau implements special measures to ensure user and data security. It houses a security system based on permission and authentication mechanisms for user access and data connections.
  • Predictive Analytics: Tableau houses several data modeling capabilities, including forecasting and trending. Users can easily add a trend line or forecast data for any chart, and view details describing the fit easily.

Simplify Tableau ETL Using Hevo’s No-code Data Pipeline

Hevo is a No-code Data Pipeline that offers a fully-managed solution to set up data integration from 100+ data sources including Tableau and will let you directly load data to a Data Warehouse, a Business Intelligence tool such as Tableau, or the destination of your choice. It will automate your data flow in minutes without writing any line of code. Its fault-tolerant architecture makes sure that your data is secure and consistent. Hevo provides you with a truly efficient and fully-automated solution to manage data in real-time and always have analysis-ready data.

Let’s Look at Some Salient Features of Hevo:

  • Fully Managed: It requires no management and maintenance as Hevo is a fully automated platform.
  • Data Transformation: It provides a simple interface to perfect, modify, and enrich the data you want to transfer.
  • Real-Time: Hevo offers real-time data migration. So, your data is always ready for analysis.
  • Schema Management: Hevo can automatically detect the schema of the incoming data and maps it to the destination schema.
  • Live Monitoring: Advanced monitoring gives you a one-stop view to watch all the activities that occur within pipelines.
  • Live Support: Hevo team is available round the clock to extend exceptional support to its customers through chat, email, and support calls.

Explore more about Hevo by signing up for the 14-day trial today!

Benefits of Tableau

Business Intelligence processes play a key role in the organization of data which makes it easier to access and analyze the data. The decision-makers can accordingly make an educated decision after digging into the customer data to extract actionable insights. Here are a few benefits of Tableau:

  • Increased Organizational Efficiency: It allows you to benchmark the results against the larger organization through a holistic view of your operations. This lets you discover the areas of opportunity. Since Tableau ensures that you spend less time compiling reports, you can utilize this time to innovate on new programs and products to steer business growth. For instance, Pfizer is utilizing BI platforms to work with the different departments and developed models to increase the efficiency of patient diagnosis and devise better ways to undertake clinical trials.
  • Improved Customer Experience: Tableau plays a very important role in affecting customer experience and satisfaction. Here is an example to display its tangible effect. Verizon utilized these BI systems to create over 1000 Dashboards across all of its departments. These Dashboards extracted text data from customer support and data from operations. This data was used by Verizon to identify the areas of improvement which led to a significant cutback on customer support calls by 43%.
  • Improved Employee Satisfaction: Previously, the Data Analysts and IT departments spend a very small amount of their time responding to the requests of business users. This has since changed as departments that didn’t have access to their data without the help of Data Analysts, can do so with very little training in Data Analysis. The intuitive user interface encourages the non-technical users to dig into the data leading to greater employee satisfaction.
  • Competitive Edge: The knowledge of one’s position in the market and one’s performance enables an organization to be more competitive. Tableau allows you to keep up with the changes in your industry, correctly anticipate the user needs and accordingly tweak your marketing campaign to align with the user needs.

Data Types in Tableau

Tableau works with seven different types of data. The data type identifies the type of data contained in a certain field.

Tableau Data Types
Image Source

Data Prep, Data Blending with Tableau

Data Preparation

You can have as many connections to as many different Data Sources as you like in a Tableau workbook, and you can utilize them all to generate unique visualizations that can be integrated seamlessly on a dashboard. You may build seamless interactivity for the end-user by using action filters and cross-database filters.

Tableau Data: Data Preparation
Image Source

Users will be happy to see financial data from your general ledger system and customer data from your CRM in a single dashboard, your boss will be impressed with how quickly you built it, and you’ll smile to yourself as you remember how simple it was to connect everything and bring it all together with a few clicks.

Data Blending

Data blending” is a Tableau technical term for combining two different data sources in a single visualization. Data blending is done at an aggregate level, unlike joining, which is done row by row. This novel technique was first introduced in Tableau 6 and has since been refined.

Tableau’s data blending feature allows you to perform excellent visual analyses with diverse data and provides the following benefits:

  • Data from two or more big data sets can be combined without having to link them row by row. In an enterprise data warehouse with huge fact tables, this can be extremely valuable. Tableau can be used to blend the data at an aggregate level rather than combining them together. This can boost performance and give you a lot of data model flexibility.
  • Control the aggregate level. Is there a record for every client for every day in one of your data sets, and monthly targets in another? If you combined those two sets, you might get a bunch of monthly numbers that are duplicated, but when you use data blending, your monthly values come through precisely.
  • Let your imagination run wild. Because data blending occurs concurrently with data visualization, it is less of a data preparation stage and more of a “real-time” data experience. You can get really creative and modify the level of aggregation on the fly with a parameter or blend different time periods for period-over-period comparisons.

Tableau Integration Data Sources

Tableau houses numerous connectors that are built and optimized for a vast number of files and databases. The list of supported Tableau Data Connectors ranges from PDFs and Spreadsheet applications such as Microsoft Excel to various Big Data, and Relational On-premise or Cloud Databases such as Google BigQuery, MySQL, etc to various Web Data Connectors that allow developers to integrate user’s Tableau Data with complex and dynamic data on the web.

You can also check our article on Tableau AWS Deployment.

The following image shows the list of connectors supported by Tableau:

Tableau Connectors
Image Source: https://www.guru99.com/tableau-data-connections.html

Tableau Data Source connectors allow users to connect with a variety of data sources which are as follows:

1) Tableau Data Connectivity to a File

The steps to connect a Text file with Tableau are as follows:

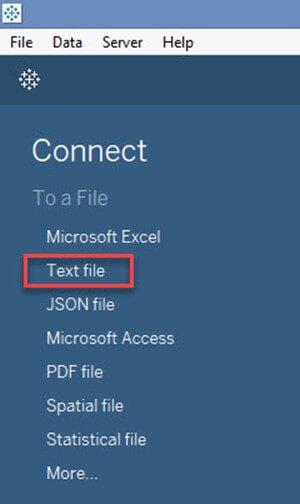

  • Step 1: Select Text file/Microsoft Excel or any other file as per requirement from the Data tab in the upper left corner.
Connecting to Text File
Image Source: https://www.guru99.com/tableau-data-connections.html
  • Step 2: Browse to the Text/Microsoft Excel or any other file that you wish to open in Tableau using the File Browser and click on Open.
Opening Text File
Image Source: https://www.guru99.com/tableau-data-connections.html
  • Step 3: The Text/Microsoft Excel or the file of choice will be imported and can be accessed from the Connections pane on the left.
FIle Connection in Tableau
Image Source: https://www.guru99.com/tableau-data-connections.html

2) Tableau Data Connectivity to a Server

You can connect Tableau with your desired database by implementing the following steps:

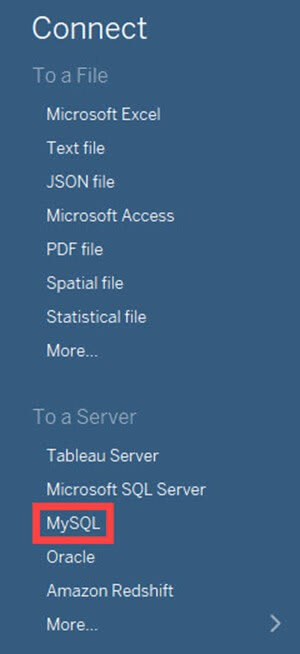

  • Step 1: Select MySQL or any other Database/Server as per requirements from the Data tab found in the upper left corner.
MySQL Tableau Connection
Image Source: https://www.guru99.com/tableau-data-connections.html
  • Step 2: Enter the required credentials to access the Database/Server and then click on Sign In.
MySQL Tableau Login
Image Source: https://hevodata.com/learn/connecting-mysql-to-tableau/

How does Tableau work?

Tableau supports integration with almost all the data sources. One can use Tableau to extract data from any platform and analyze it. Pulling data from simple CSV files, PDFs, spreadsheets to complex Databases such as Oracle and Cloud Databases and Data Warehouses can easily be accomplished with the help of Tableau.

Tableau keeps developing new data connectors to provide more data accessibility and flexibility to users. Depending on the version of Tableau that you have, the number of supported data connectors varies.

All the data extracted by Tableau can be connected live or extracted to Tableau’s data engine to a Tableau Desktop. After receiving the information, Data Analysts, Data Scientists, Business Analysts can pull this data and generate visualizations from it to get insights from the data.

Tableau offers many customizable and pre-built dashboards for different use cases, and users can also build design dashboards from scratch. All the data get visualized on these dashboards. The dashboards are shared with the users as a static file, and users view the dashboards using Tableau Reader.

Tableau Server is an enterprise platform that handles distribution, collaboration, governance, security, automation features, models, and users can publish data from Tableau Desktop to the server.

Tableau Uses

In this section, you will go through some of the applications and uses of Tableau. Some of the main uses of Tableau are listed below:

  • Data Blending
  • For managing the metadata of large and complex datasets
  • For query translation into intuitive visualization
  • Data Visualization
  • Businesses Intelligence
  • Data Collaboration
  • Real-time Data Analysis
  • For importing large datasets

Connecting to Data in Tableau

You can connect Tableau to multiple data sources such as Excel files, text files, database management systems, and even cloud storage. You can then pull data from there and use it to create visualizations.

The process of connecting to data sources differs from one product to another. In the Desktop version, there is the “Connect” option on the left side of the window. Below this option is the different data sources that you can connect to.

Tableau Data Connections
Image Source

You simply have to select the data source that you need to connect to. You will be taken through on-screen instructions to establish a connection to the data source. Once the connection has been established, you can pull data into it for visualization.

To connect to the Server product or the Online product from Tableau Desktop do the following steps:

  • Step 1: Click the “Tableau Server” option located below “Search for Data” under Connect.
  • Step 2: A small window will pop up. To connect to the Server product, simply enter the name of the server and click Connect.
  • Step 3: If you need to connect to the Online product, simply click the “Tableau Online” option located below Quick Connect. For the Server product, use your username and password to sign in. For the Online product, use your email address and password.
  • Step 4: You can then select the data source that you need to connect to.
  • Step 5: If you are using the Server or the Online product of Tableau, you will create the connection using a web browser. You can find the Tableau Catalog in the Data Management Add-on. If you enable it in your environment, you’ll be able to connect to tables and databases from Search for Data results on the Desktop product.

What are Tableau Data Extracts?

Tableau data extracts are a “snapshot” of data that is compressed, stored, and loaded into the memory. Tableau Data Extracts (TDE) has two design aspects. The first one is that TDE is a columnar store which means that all the data is stored in a columnar fashion in a database. The next aspect is their structure which impacts the memory storage in tableau.

Integrating Unsupported Tableau Data Sources

Although Tableau supports direct integration with 80+ data sources, there are still a wide variety of data sources that are not directly supported by it. To help users establish connections with unsupported Tableau Data Sources seamlessly, the following functionalities were introduced:

1) Web Data Connector

Tableau Web Data Connector (WDC) can be defined as a set of APIs that allow developers to establish a connection between Tableau and any data on the web that is accessible over HTTP. Web Data Connector (WDC) is an HTML file that includes some JavaScript code.

Tableau houses an intuitive functionality that allows users to create their own Web Data Connector (WDC) or use an existing one. Users can create their own Web Data Connector (WDC) that is capable of reading data from any website publishing data in XML, JSON, or HTML format. The Web Data Connector (WDC) must be hosted on a local Web Server on your computer, on a Web Server in the user’s domain, or on any third-party Web Server.

Users can implement the following steps in order to leverage Web Data Connectors to set up unsupported Tableau Data Integrations:

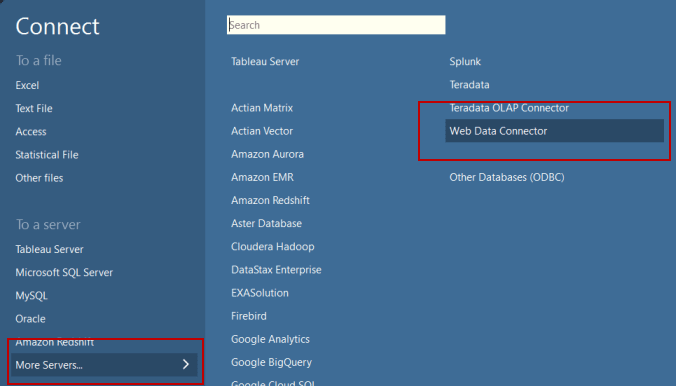

  • Step 1: Open Tableau, click on More Servers in the Connect pane, and then select Web Data Connector.
Web Data Connector Tableau
Image Source: https://tableau.github.io/webdataconnector/docs/wdc_use_in_tableau

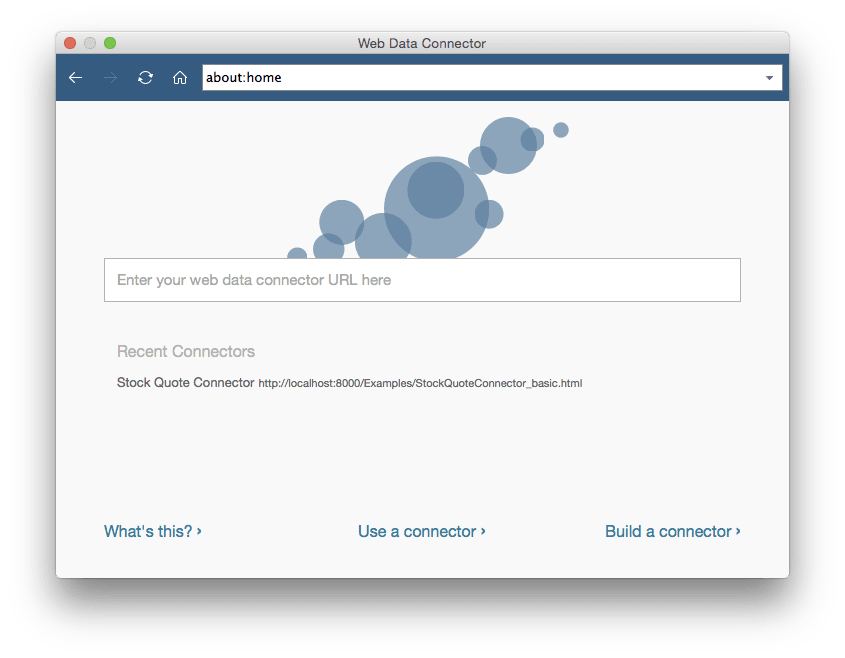

  • Step 2: Enter the URL of the WDC and press Enter.
WDC URL Tableau
Image Source: https://www.guru99.com/tableau-data-connections.html
  • Step 3: If the WDC leads to a webpage, enter any required information and select Submit.
  • Step 4: Once you’ve provided the required information, WDC will retrieve all the information as an Extract and import it into Tableau Data Connections. This data can then be analyzed as per the usual process.

2) ODBC Connector

ODBC (Open Database Connectivity) is a popular industry standard that allows a wide variety of software applications to access data stored in a database. The basis of ODBC is that software applications can make use of standard SQL queries to form a connection with a database and request data from it. The ODBC driver accepts requests in the standard syntax and converts these requests into a format that can be interpreted by the target database.

Hence, the ODBC driver can be seen as a translation layer capable of converting a general-purpose request into a database-specific format. Tableau houses functionality that allows users to connect with all ODBC-compliant data sources using its robust in-built ODBC Connector. This ODBC Connector can be leveraged to seamlessly integrate unsupported Tableau Data Sources by implementing the following steps:

  • Step 1: Open Tableau, click on More Servers in the Connect pane and then select Other Databases (ODBC).
  • Step 2: Enter the required information required to identify and establish a connection with the necessary ODBC-compliant database and click on Sign In.
Tableau ODBC Login
Image Source: https://www.progress.com/tutorials/odbc/how-to-configure-the-datadirect-odbc-mongodb-driver-with-tableau-desktop

3) Extract API

The Tableau Extract API houses functionalities that allow users to perform the following operations:

  • Create and add data to Extract files that can improve performance exponentially and provide uninterrupted offline access to all your Tableau Data Sources.
  • Write programs capable of integrating with unsupported Tableau Data Sources, and writing data into Extract files for later use.
  • Write programs capable of creating Extract files that contain data from multiple tables.

The platforms supported by Tableau Extract API are as follows:

  • Windows 7 or later.
  • Windows Server 2008 R2 or later.
  • Mac OS X (10.9 and later).
  • CentOS 7 and later.
  • Fedora 18 and later.
  • Ubuntu 12.04 and later.

The programming languages supported by Tableau Extract API are as follows:

  • C/C++
  • Python 2.x and 3.x
  • Java

Information on how to set up Extract API depending on the programming language and platform being used can be found here.

4) Hyper API

Tableau Hyper can be seen as a high-performance In-memory Data Engine technology that allows users to analyze large and complex datasets faster, by seamlessly evaluating all analytical queries in the transactional database.

Users can leverage the Tableau Hyper API to perform the following operations:

  • Open existing Extract files.
  • Perform various CRUD (Create, Read, Update, Delete) operations on Extract files.
  • Create Extracts for various unsupported Tableau Data Sources.
  • Automate various custom Extract, Transform and Load (ETL) operations.
  • Use SQL queries to interact with data in Tableau Hyper Extracts.

The platforms supported by Tableau Hyper API are as follows:

  • Microsoft Windows Server 2019, 2016, 2012 R2, 2012, 2008 R2
  • Microsoft Windows 7 or newer (64-bit)
  • Amazon Linux 2, Red Hat Enterprise Linux (RHEL) 7.3+, CentOS 7.3+, Oracle Linux 7.3+, Ubuntu 16.04 LTS, and 18.04 LTS
  • macOS 10.13 or newer

The programming languages supported by Tableau Hyper API are as follows:

  • Python (3.6 or newer)
  • Java (Java 8 or newer)
  • C++ (C++11 or newer)
  • C#/.NET (.NET Standard 2.0)

Information on how to set up Hyper API depending on the programming language and platform being used can be found here.


This article provided you with an understanding of how Tableau Data Integration works along with various data sources from which data can be imported into Tableau irrespective of whether they are directly supported by it or not.

Choosing a Business Intelligence and Data Analysis tool for your business can be a tough decision primarily because almost all departments in a business now make use of multiple platforms to run their day-to-day operations and there is no single tool that can integrate with all these sources easily.

Although Business Intelligence tools like Tableau house functionalities that allow integration with data sources that are not supported directly by it, these functionalities are considered to be tough to understand and implement for someone that does not have a technical background. Even if the users are able to set up these functionalities, they are considered to be error-prone and require regular maintenance. Hence, businesses can consider using automated Data Integration platforms like Hevo.

Hevo helps you directly transfer data from a source of your choice to a Data Warehouse, Business Intelligence tools such as Tableau, etc., or desired destination in a fully automated and secure manner without having to write the code. It will make your life easier and make data migration hassle-free. It is User-Friendly, Reliable, and Secure.

Details on Hevo pricing can be found here. Give Hevo a try by signing up for the 14-day free trial today.

Former Research Analyst, Hevo Data

Manik has a keen interest in data, software architecture, and has a flair for writing hightly technical content. He has experience writing articles on diverse topics related to data integration and infrastructure.
