How to Create a REST API to MySQL Connection?

In the modern world, which is so driven by data, integrating APIs with databases has become the most critical task a developer must do. A survey¹ shows that around 41.09% of people prefer MySQL as their primary database., Meanwhile, another survey² shows that about 93.4% still harness the powers of REST APIs.

If you are part of the population looking for ways in which they can connect REST API to MySQL for better ability with data handling, then this guide is for you.

Connecting the two is daunting, but we’ve got you covered! This blog will show easy ways to link REST APIs to MySQL so you can effectively manage these integrations and develop a custom MySQL REST API ETL pipeline for your business.

What is MySQL REST API?

• The MySQL REST API is an interface that enables web-based applications to interact with a MySQL database using the principles of Representational State Transfer (REST).
• This API allows for manipulating data stored in a MySQL database, facilitating actions such as data extraction, modification, and retrieval through standardized HTTP requests like GET, PUT, POST, and DELETE.
• By adhering to REST principles, the MySQL REST API enhances performance, security, and flexibility, making it a valuable tool for developers working with MySQL databases in various projects.

How is MySQL API used in ETL?

Businesses often rely on data from multiple, siloed systems, making it critical to merge this information into a unified view for informed decision-making.

ETL (Extract, Transform, Load) is an essential strategy for integrating data from various sources.MySQL plays a crucial role in an ETL pipeline:

• Extract: The MySQL API can extract data from business systems and load it into the database.
• Transform: Before loading data into the target system, it must be cleansed, verified, sorted, and standardized. This transformation process helps ensure data quality and consistency.
• Load: The transformed data is then loaded into the MySQL database, making it available for searching and analysis.

Using MySQL in an ETL pipeline offers several benefits:

1. Single Point of View: Combining data from disparate systems provides a consolidated view, enabling more comprehensive analysis and visualization.
2. Historical Context: An ETL pipeline can integrate information from legacy systems with newer data, allowing for historical comparisons and deeper insights.
3. Efficiency and Productivity: Automating the ETL process through tools like Integrate.io streamlines data migration, reducing manual effort and the risk of errors.

Method 1: Using API-Based Custom Code Snippets to Load Data from REST API to MySQL

MySQL houses the support for numerous connectors and APIs (drivers) that allow users to establish a connection between different applications and MySQL database servers using various programming languages.

To use these drivers, you must install the driver using the binary distribution or build the driver from scratch. You can consider using tools like Maven if you plan to repeat this exercise for different data sources or destination MySQL servers.

You can learn more about how to connect REST API to database using these drivers and connectors and numerous concepts associated with it from the following sections:

• Understanding the General Workflow of Loading Data from APIs
• Understanding Connection Pooling
• Understanding Multi-Host Connections
• Understanding Data Compressions and Schema Validation
• Understanding Logging

Understanding the General Workflow of Loading Data from APIs

To start loading data from REST APIs, you will first have to leverage the “DriverManager” class to obtain and establish a connection with your MySQL Server. You can use the following syntax for creating your connection URL:

protocol//[hosts][/database][?properties]

There are multiple protocols that you can choose from to set up the connection with your MySQL servers. These are as follows:

• jdbc:mysql: This protocol helps set up ordinary & JDBC failover connections.
• jdbc:mysql:loadbalance: This protocol houses support for load balancing.
• jdbc:mysql:replication: This protocol helps set up JDBC-based replication connections.

You can provide one or multiple hostnames in the “host parameter”, along with port numbers to specify host-specific properties. For example, you can create a connection URL as follows:

jdbc:mysql:replication//myUser:myPassword@[address=(host=myHost1)(port=1111)(key1=value1)]

Once you’ve set up the necessary configurations, you need to create a statement object that will carry out SQL operations such as insert, delete, update, etc., and fetch results.

With your statement object ready, you will have to execute the insert command in a repetitive loop based on conditional logic. Once you’ve executed the insert statement or any other operation, you will need to close the statement and connection object.

For example, if you want to insert, set, and update values in your MySQL database using APIs, you can do so using the following lines of code:

While (someCondition) {
	try{
//LOAD the API driver
	Class.forName("com.mysql.jdbc.Driver").newInstance();
// Obtain a Connection
	Connection conn = DriverManager.getConnection( "jdbc:mysql:replication//myUser:myPassword@[address=(host=myHost1)(port=1111)(key1=value1)] ");

//specify the INSERT statement
	PreparedStatement stmt = conn.prepareStatement("INSERT into my_records" +" VALUES(?,?,?,?,?)");

// SET the values in your table columns
	stmt.setInt(1, 0);
	stmt.setString(2, myString);
	stmt.setString(3,myAddress);
	stmt.setString(4, myName);
	stmt.setString(5, myRole);

//EXECUTE the update
	stmt.executeUpdate();
	}// End of TRY block

        catch (Exception e) {
        System.err.println("Error: ");
        e.printStackTrace(System.err);
        }

// CLOSE the Statement and Connection objects
	finally {
	stmt.close();
	conn.close();
	}
} // END of While loop

Understanding Connection Pooling

MySQL allows users to manage data coming in from different sources at different speeds and across time intervals by setting up numerous connections using the connection pooling functionality, which helps boost the performance of your system and reduce overall resource consumption. You can automatically send new connections back to the pool with connection pooling.

You can configure the connection pool for your MySQL instance by accessing the application server configurations file using the Java Naming and Directory Interface (JNDI). Ensure that while defining the size for your connection pool, you keep track of the resources such as memory/CPUs/context switches etc., that you have in place.

Understanding Multi-Host Connections

Often in enterprise-grade databases and systems, you might have multiple MySQL instances that act as the destination-based receivers for your data. To manage a large set of connections constituting multiple hosts, ports, etc., you must leverage various operations such as replication, failover, load balancing, etc.

Understanding Data Compressions and Schema Validation

MySQL allows users to optimize network transmission and ingestion times by leveraging X DevAPI connections to compress data. To use such compression algorithms, you will have to negotiate with the server and fix the negotiation priority using the “xdevapi.compressionalgorithms” connection property.

It further allows users to manage the incoming data such as JSON documents using the schema validation functionality that validates each collection against a schema before inserting or updating any data. To do this, you can specify a JSON schema while creating or modifying a data collection. MySQL will then perform schema validation at the server level when you create or update the document.

It will even send an error, in case the data does not validate against the schema.

Understanding Logging

MySQL keeps track of all the database transactions such as data transfers, updations, deletions, etc., by maintaining a comprehensive log. It allows users to configure and manage the log maintenance by modifying/configuring the SLF4J and Log4J files.

Limitation of Using Customer Code Snippets and APIs to Load Data to MySQL

• Using drivers requires keeping track of updates and manually updating them when new releases are available or when your technology stack(Java, Node.js, C++, Python) undergoes updates. Similarly, with new versions, existing API calls and methods may depreciate and require upgrades.
• To ensure smooth data transfers and high efficiencies, you will have to add/remove/change the new properties associated with your connections when any change occurs.
• Working with APIs to load data requires strong technical knowledge to handle operations such as connection pooling, query optimization, compression, validation, etc.

Pro Tip: Bring data from REST to any Data Warehouse such as Redshift, BigQuery, or Snowflake without writing code. Get analysis-ready REST data in real time.

Method 2: Using Hevo Data, a No-code Data Pipeline

Step 1: Configure your REST API Source

Connect Hevo Data with your REST API source by providing a unique name for your pipeline and information about the method you want to use, choosing between GET and POST. You will also need to provide the URL for your API endpoint, data root for your API, and your credentials such as username and password to allow Hevo to access your data, along with information about your query params and API headers.

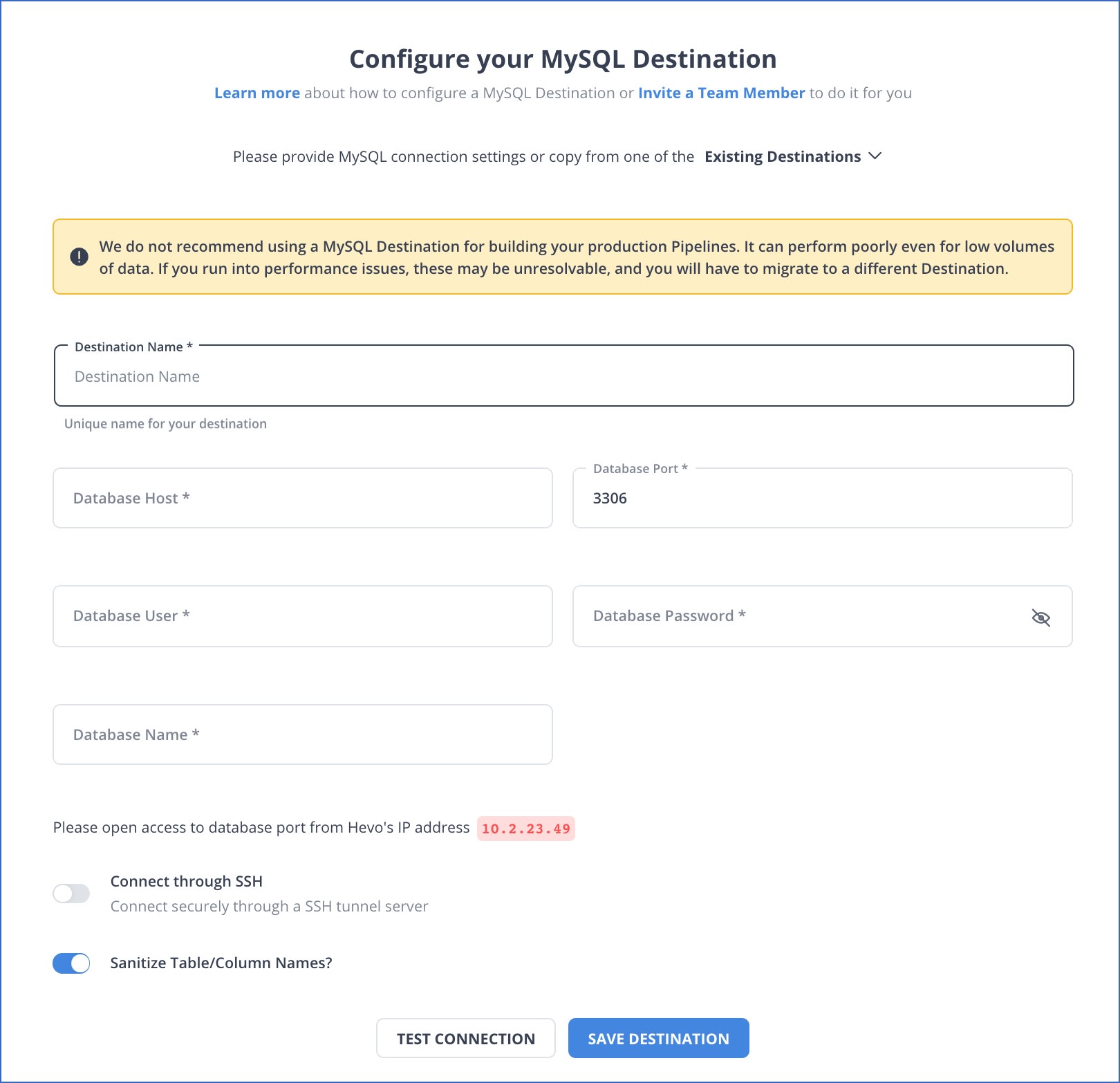

Step 2: Configure your MySQL Destination

Load data from REST API to MySQL by providing your MySQL database credentials, such as your authorized username, password, information about your host IP, and the port number value. You will also need to provide a name for your database and a unique name for this destination.

• Learn more on how to configure Rest API as the source.
• Learn more on how to configure MySQL as the destination.

Hevo allows you to focus on key business needs and perform insightful analysis using various BI tools such as Power BI, Tableau, etc.

Set up a Reliable Data Pipeline in Minutes and Experience Hevo for 14 days for no cost by Get Started with Hevo for Free

Conclusion

1. This article teaches you how to connect API to MySQL database and provides in-depth knowledge about the concepts behind every step to help you understand and implement them efficiently.
2. Implementing custom code to load data can be challenging, especially for beginners. It requires you to keep track of updates and manually update new releases.
3. Why would you want to spend your engineering team’s bandwidth on this? You definitely got to make use of that for other high-priority tasks.
