AWS SQL Server: Configure and Setup in 9 Easy Steps

Last Modified: December 29th, 2022

AWS SQL Server

Cloud Database services are becoming popular day by day as companies become more data-driven. These services allow organizations to have access to a wide range of databases for all their business needs. One such cloud tool is AWS RDS (Relational Database Service). AWS RDS helps you connect to any database of your choice including SQL Server in a hassle-free manner. AWS SQL Server can be used for data recovery and backups.

AWS SQL Server Deployment is a relatively new technology that helps you deploy your SQL Server data directly onto AWS RDS in a seamless manner. AWS SQL Server Deployment provides multiple channels through which you can utilize the best of both technologies and acquire valuable insights from your customer data.

This article gives you a step-by-step guide to set up AWS SQL Server Deployment for your organization easily. It also provides a brief overview of AWS SQL Server Deployment and gives the prerequisites for this process. Read along how you can easily deploy your SQL Server data onto AWS RDS easily.

Table of Contents


  • AWS accounts with privileges for creating databases.
  • Basic understanding of SQL Server and SQL Server clients.

What is Amazon RDS?

Amazon Relational Database Service (RDS) is a collection of managed services that simplify the setup, operation, and scaling of databases in the cloud.

With Amazon RDS, you can support growing apps with high availability, storage scalability, and throughput. You can take advantage of Amazon RDS flexible pay-per-use pricing to match various application usage patterns.

You can easily build and innovate new apps with Amazon RDS as well instead of worrying about self-managing your databases, which can quite often be complex, time-consuming, and expensive. Amazon RDS helps make sure that the relational database software powering your deployment stays up-to-date with the latest patches.

Amazon RDS also provides best practice guidance by analyzing usage and configuration metrics from your database instances. The recommendation covers areas such as database engine storage, versions, networking, and instance types. You can sift through the available recommendations and execute a recommended action immediately, dismiss it entirely, or schedule it for their next maintenance window.

With Amazon RDS, you can even scale the memory and compute resources powering your deployment up or down, to a maximum of 32 vCPUs along with 244 GiB of RAM. Compute scaling operations can typically be completed in a few minutes in Amazon RDS.

What is AWS SQL Server Deployment?

Image Source

Amazon Relational database service is a completely managed relational database offered based on a pay-as-you-go pricing model. It allows organizations to have access to highly available databases without having the skills to install, configure and maintain one. RDS abstracts away all the infrastructure details as configurations that can be selected from the AWS management console. All popular database engines like MySQL, PostgreSQL, Oracle, MariaDB, and SQLServer are available in RDS.

Along with these, Amazon also offers a proprietary database engine called Aurora that is supposedly faster than MySQL and PostgreSQL. RDS pricing is according to the type of instance and the amount of storage configured. The biggest trick in the arsenal is the auto-scaling capability that allows databases to scale to a predefined maximum threshold value in case the demand exceeds the configured storage capacity. All these make AWS SQL Deployment a straightforward choice for organizations that prefers cloud-based services for their deployments. SQL Server is an enterprise-grade database from Microsoft that is offered based on a license model.

To learn more about AWS RDS, click this link.

To learn more about SQL Server, click this link.

Simplify Data Analysis with Hevo’s No-code Data Pipeline

Hevo Data, a No-code Data Pipeline helps to load data from any data source such as SQL Server into destinations like Databases, SaaS applications, Cloud Storage, BI Tools, SDK’s, and Streaming Services and simplifies the ETL process. It supports 100+ data sources (30+ free sources) including SQL Server and is a 3-step process by just selecting the data source, providing valid credentials, and choosing the destination. Hevo not only loads the data onto the desired Data Warehouse or destination of your choice but also enriches the data and transforms it into an analysis-ready form without having to write a single line of code.

Its completely automated Data Pipeline offers data to be delivered in real-time without any loss from source to destination. Its fault-tolerant and scalable architecture ensure that the data is handled in a secure, consistent manner with zero data loss and supports different forms of data. The solutions provided are consistent and work with different BI tools as well.

Get Started with Hevo for free

Check out why Hevo is the Best:

  • Secure: Hevo has a fault-tolerant architecture that ensures that the data is handled in a secure, consistent manner with zero data loss.
  • Schema Management: Hevo takes away the tedious task of schema management & automatically detects the schema of incoming data and maps it to the destination schema.
  • Minimal Learning: Hevo, with its simple and interactive UI, is extremely simple for new customers to work on and perform operations.
  • Hevo Is Built To Scale: As the number of sources and the volume of your data grows, Hevo scales horizontally, handling millions of records per minute with very little latency.
  • Incremental Data Load: Hevo allows the transfer of data that has been modified in real-time. This ensures efficient utilization of bandwidth on both ends.
  • Live Support: The Hevo team is available round the clock to extend exceptional support to its customers through chat, email, and support calls.
  • Live Monitoring: Hevo allows you to monitor the data flow and check where your data is at a particular point in time.
Sign up here for a 14-day Free Trial!

Configure and Setup AWS SQL Server Instance

You can follow these 9 simple steps to set up your AWS SQL Server Deployment:

Step 1: Accessing the RDS Management Console

The first step in setting up your AWS SQL Server Deployment is to use the AWS management console and configure the required instance types and security settings.

You can do this by heading to the AWS management console and searching for RDS as shown below.

AWS SQL Server Deployment: Searching for RDS
Image Source: Self

Step 2: Create your Database

Then head to the databases section and click on ‘Create Database

Create your Database
Image Source: Self

Step 3: Choosing the Database Creation Method

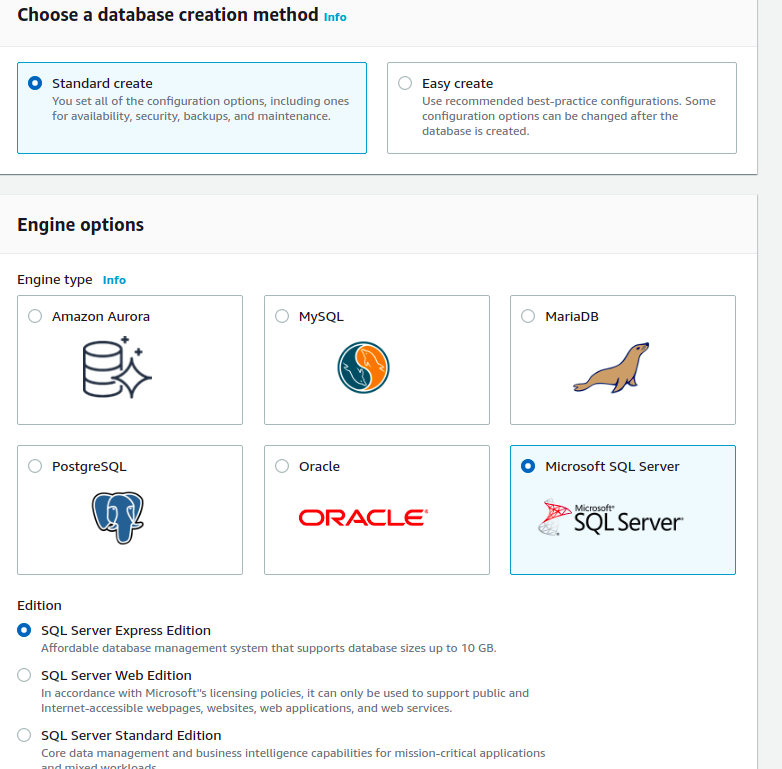

The next step in the AWS SQL Server Deployment is to choose the ‘Standard Create’ option and then choose the SQL Server option. Use SQL Server Express if you are looking for the cheapest option.

Database Creation - AWS SQL Server
Image Source: Self

Step 4: Configure the Username & Password

Now, select a database name and configure the admin username and password. The database name you selected will appear in the AWS management console. Use a readable meaningful name here as shown below.

Settings - AWS SQL Server
Image Source:Self

Step 5: Select the Database Instance Type

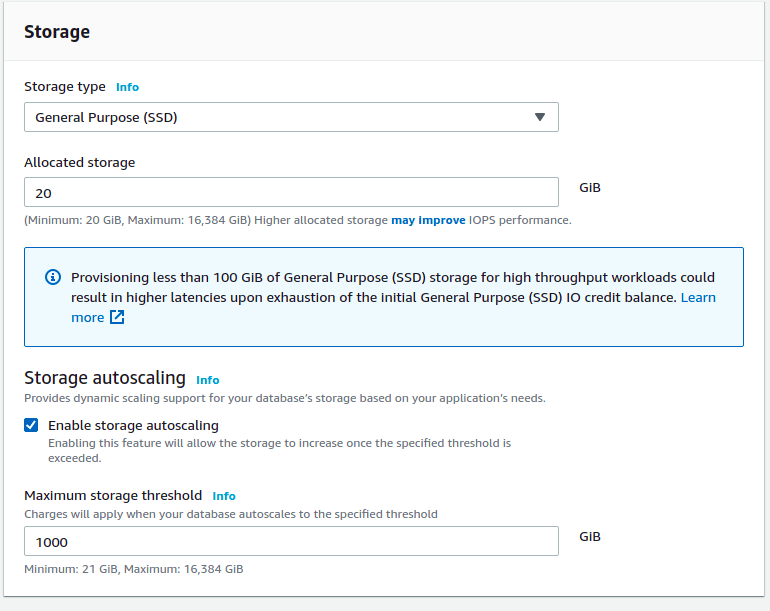

Select the database instance type and the storage configuration. The instance type you select here has a direct connection to your costs. You can select ‘dB.t3.small’ as the instance type and 20GB as the minimum storage.

Ensure that the storage auto-scaling option is selected when you set up AWS SQL Server Deployment. This is for scaling the database automatically in case the data demand is higher. AWS will only charge for the 20GB, till your storage requirements breach that. Make sure that the maximum storage threshold is a comfortable value for you from a cost perspective as shown below.

Storage Configuration Panel - AWS SQL ServerPanvel
Image Source: Self

Step 6: Select the Virtual Private Group

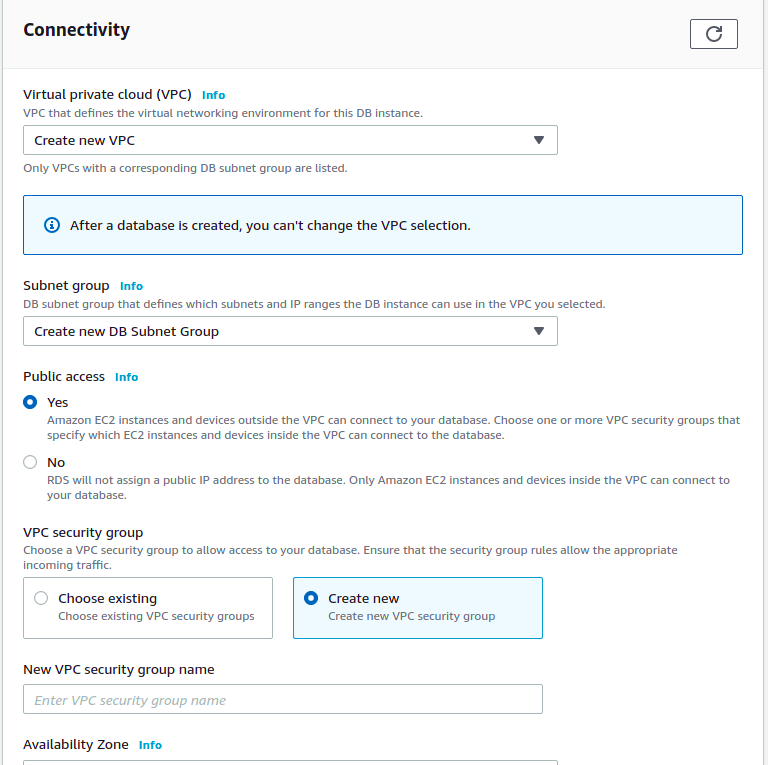

The next step in AWS SQL Server Deployment is to choose the virtual private group. To do this, select the virtual private group and security group settings. These settings affect the ability of clients to connect to your database and the overall security of your database. You can choose to create a new VPC and Security group if you don’t already have them.

In case you already have an existing VPC and security group, ensure that incoming connections are enabled to port 1433  from your client system IPs. Also, enable public access. This means a public IP will be allocated to your database instance. This is shown below.

Virtual Private Group - AWS SQL Server
Image Source: Self

Step 7: Enable Authentication

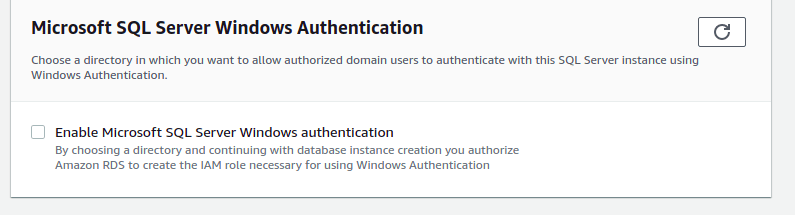

The next step in AWS SQL Server Deployment is to authenticate both the source and destination of the connection. If you want to enable authentication via windows authentication, you should enable Microsoft SQL Server Windows Authentication. To enable this, you should already have a directory created in AWS. Enabling this helps in logging in users through their windows username and password as shown below.

Authentication - AWS SQL Server
Image Source: Self

Step 8: Estimating the Cost of the Connection

The console will display the estimated cost by this stage with a button to create a database. Click Create Database and wait for AWS to finish configuring your database.

Step 9: Noting down the Connection

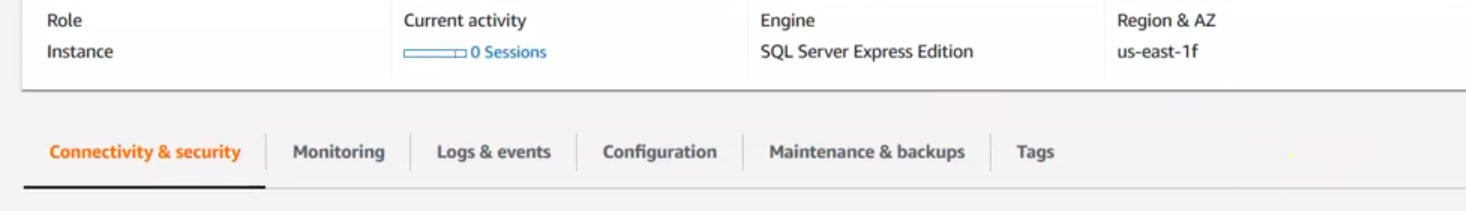

The last step of AWS SQL Server Deployment is to note down the connection. To do this, wait till the database shows up in the RDS database section with status as available. Note down the URL for client connection from the Connectivity & security tab. You can use them with the SQL Server Management Studio to connect to the database you just created as shown below.

Noting down the Connection - AWS SQL Server
Image Source: Self

That completes the steps involved in AWS SQL Server Deployment. As evident, the AWS management console makes it very easy for anyone with the knowledge of security groups and virtual private groups to create and manage SQL Server databases.

Pros and Cons of Deploying SQL Server in AWS


  • Elastic Scalability: By adjusting a few settings, you can easily change the resources allotted to your SQL Server in AWS, and the changes will take effect right away. Additionally, RDS SQL Server supports storage autoscaling, which enables it to automatically allocate more storage when it becomes necessary without any user input.
  • Pay on Demand: RDS SQL Server is hourly priced, so there is no need for a sizable upfront investment—you only pay for what you use. This, along with the flexibility to increase or decrease the resources allotted as necessary, enables you to reduce costs or even quickly spin up RDS instances for ad hoc jobs and destroy them right away. You can use Reserved DB Instances if your workloads are more predictable, giving up the aforementioned flexibility in exchange for substantial savings.


  • Instance Limitations: The restrictions of the RDS SQL Server are something you should be very aware of. For instance, depending on the chosen instance type, each RDS instance has a maximum number of SQL Server databases it can support, which ranges from 30 to 100. Additionally, the maximum size for a single database is 16 TB.
  • Less Control: You have no control over the database’s configuration when using a managed service. This includes having no control over the data’s physical location, which restricts the amount of data hybridity and its availability across regions.
  • Vendor Lock-in: Once you start using RDS SQL Server, no deployment outside of AWS will be able to use that data without any issues. There are still management tasks you must complete on your own even though the service is something you must pay for at a premium. Additionally, even if they don’t meet the standards of your business, the predetermined service threshold limits for data protection, accessibility, and encryption cannot be changed.


This article gave you a step-by-step guide on AWS SQL Server Deployment. It also gave a brief overview of both technologies and the important prerequisites you must have before setting it up. Overall, the flexibility that organizations gain by using AWS RDS instead of deploying and maintaining their own database systems is very high. Amazon also provides tools for moving data to and from the RDS database systems. AWS Data Pipeline, AWS Data Migration services, etc. are very helpful in moving data from various sources to RDS instances. The only weakness in this architecture is that Amazon-provided tools are more focused on sources and targets that stay with the AWS ecosystem.

In case you want to integrate data into your desired Database/destination and seamlessly visualize it in a BI tool of your choice, then Hevo Data is the right choice for you! It will help simplify the ETL and management process of both the data sources and the destinations.

Visit our Website to Explore Hevo

Want to take Hevo for a spin? Sign Up for a 14-day free trial and experience the feature-rich Hevo suite first hand.

Share your experience of setting up AWS SQL Server Deployment in the comments section below!
