Understanding Google BigQuery Cluster Tables: A Comprehensive Guide 101

on Big Data, BigQuery Functions, Data Aggregation, Data Driven Strategies, Data Engineering, Data Extraction, Data Warehouse, ETL Tutorials, Google BigQuery, Google Cloud Platform • September 24th, 2021 • Write for Hevo

Cloud storages provide individuals and businesses with online platforms for the storage of data. Cloud storages provide their users with many benefits compared to On-Premise storage. Cloud users can access their data at any time and from any location. The Cloud is also very elastic, allowing users to scale their compute and storage resources based on their requirements. Due to this, many businesses are moving their data from On-Premise storage to the Cloud.

Google BigQuery is a Cloud Data Warehouse platform. It provides its users with an online platform where they can create Data Warehouses for data storage. Google BigQuery scales well to meet the changing storage and compute needs of its users. It also uses different mechanisms to provide security to the users’ data.

When using Google BigQuery, you will want to reduce the query costs. BigQuery has introduced a feature called BigQuery Cluster Tables to help you achieve this. BigQuery Clustered Tables automatically organize table data based on the values of one or more columns. Queries that use any of the clustering columns don’t scan unnecessary data. This improves the performance of queries run against the table. In this article, you will be exploring the steps to create Google BigQuery Cluster Tables in detail.

Table of Contents

Prerequisites

To successfully create a Google BigQuery Cluster Table, you need to meet the following requirements:

  • A Google BigQuery Account.
  • Basic understanding and working of Google BigQuery.

Introduction to Google BigQuery

BigQuery Cluster - Google BigQuery Logo
Image Source

Google BigQuery is a Cost-Effective, Serverless, and highly Scalable Multi-Cloud Data Warehouse designed and developed to offer business agility. BigQuery was developed by Google, hence, it uses the processing power of Google’s infrastructure. It comes with built-in Machine Learning capabilities that can help you to understand your data better.

You can use Google BigQuery in the following three main ways:

  • Load and Export Data: With BigQuery, you can easily and quickly load your data into BigQuery. BigQuery will then process your data, after which you can export it for further analysis.
  • Query and View Data: BigQuery allows you to run interactive queries. You can also run Batch queries and create Virtual tables from data.
  • Manage Data: You can use BigQuery to list Jobs, Datasets, Projects, and Tables and update your datasets. BigQuery makes it feasible for you to delete and manage any data that you upload. BigQuery also allows you to create Dashboards and Reports that you can use to analyze your data and gain meaningful insights from it. It is also a powerful tool for real-time Data Analytics.

To explore more about Google BigQuery, visit here.

Introduction to Google Bigquery Cluster Tables

BigQuery Cluster Tables
Image Source

Google BigQuery has introduced a feature called Clustered Tables to help its users to get optimized performance from the Cloud platform when executing their queries. After creating a Clustered Table in BigQuery, its data is automatically organized based on the values of one or more columns in the schema of the table. The specified columns are used for colocating related data. When a BigQuery Cluster is created from multiple table columns, the order of the columns is very important as it determines the order in which the data will be sorted.

Clustered Tables improve the performance of particular types of queries such as queries that Aggregate data and queries that use Filter clauses. When you write data to a clustered table by a Load job or Query job, BigQuery uses the values of the Clustering columns to sort the data. The columns help BigQuery to organize the values into multiple blocks in the storage. When you run a query with a clause that filters data using the Clustering columns, BigQuery will use the sorted blocks to avoid scanning unnecessary data. This means that the queries will take a shorter time to return results.

In the next section, you will understand how to create BigQuery Cluster Tables for optimized query performance.

Simplify Data Analysis with Hevo’s No-code Data Pipeline

Hevo Data, a No-code Data Pipeline, helps load data from any data source such as Databases, SaaS applications, Cloud Storage, SDK,s, and Streaming Services and simplifies the ETL process. It supports 100+ Data Sources including 30+ Free Sources. It is a 3-step process by just selecting the data source, providing valid credentials, and choosing the destination. Hevo loads the data onto the desired Data Warehouse/destination like Google BigQuery and enriches the data and transforms it into an analysis-ready form without having to write a single line of code.

Its completely automated pipeline offers data to be delivered in real-time without any loss from source to destination. Its fault-tolerant and scalable architecture ensure that the data is handled in a secure, consistent manner with zero data loss and supports different forms of data. The solutions provided are consistent and work with different BI tools as well.

GET STARTED WITH HEVO FOR FREE

Check out why Hevo is the Best:

  • Secure: Hevo has a fault-tolerant architecture that ensures that the data is handled securely and consistently with zero data loss.
  • Schema Management: Hevo takes away the tedious task of schema management & automatically detects the schema of incoming data and maps it to the destination schema.
  • Minimal Learning: Hevo, with its simple and interactive UI, is extremely simple for new customers to work on and perform operations.
  • Hevo Is Built To Scale: As the number of sources and the volume of your data grows, Hevo scales horizontally, handling millions of records per minute with very little latency.
  • Incremental Data Load: Hevo allows the transfer of data that has been modified in real-time. This ensures efficient utilization of bandwidth on both ends.
  • Live Support: The Hevo team is available round the clock to extend exceptional support to its customers through chat, email, and support calls.
  • Live Monitoring: Hevo allows you to monitor the data flow and check where your data is at a particular point in time.

Simplify your Data Analysis with Hevo today!

SIGN UP HERE FOR A 14-DAY FREE TRIAL!

Steps to Create a Google BigQuery Cluster Table

There are different ways through which you can create BigQuery Cluster Tables. In this section, you will learn how to create BigQuery Clustered Tables using the bq command-line tool.

Note: You can use up to four Clustering columns to create a Clustered Table.

The following steps can help you to create an empty Clustered Table and give it a Schema Definition:

Step 1: Open the BigQuery page on the Google Cloud Console

Step 2:  Expand your Project in the Explorer panel and select a Dataset.

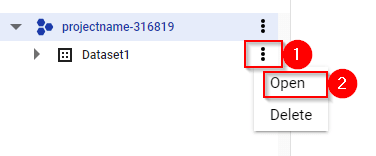

Step 3: Expand the three vertical dots and select “Open”.

BigQuery Cluster - Open Dataset
Image Source

Step 4: Click the “Create table +” on the details panel.

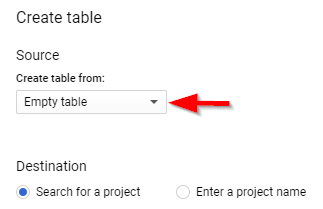

Step 5: The Create table window will be opened. Click the “Create table from” drop-down menu and choose “Empty table”.

BigQuery Cluster - Create Empty Table
Image Source

Step 6: Next, under the “Destination”, select the appropriate dataset under “Dataset Name” and enter the name of the table you are creating under “Table name”. Also, make sure that the “Table Type” is selected as “Native”.

Step 7: Enter the Schema Definition under “Schema”. Note that you must turn on the “Enable Text” toggle button to be able to enter the Schema name. The schema should also be entered as a JSON array. If you need to enter the schema manually, use the “+ Add Field” button.

Step 8: For the “Clustering Order”, enter the names of between one and four columns and separate their names using commas (,).

Step 9: Click the “Advanced Options” drop-down button. For Encryption activate the “Customer-Managed Key” radio button so as to use a Cloud Key Management Service Key. If you choose the “Google-Managed Key” option, BigQuery will encrypt your data at rest.

Step 10: Click the “Create Table” button.

Hurray! You have successfully created a Google BigQuery Cluster Table.

Conclusion

In this article, you learned about Google BigQuery and its services. Moreover, you understood about Google BigQuery Cluster Tables. In addition, you learned the steps to create BigQuery Cluster Tables via the bq console. Using the BigQuery Cluster technique you can input queries that use any of the clustering columns to filter data and this will take a shorter time to return your results.

Moreover, extracting complex data from a diverse set of data sources and loading it into Google BigQuery can be quite challenging and may become cumbersome, however, a simpler alternative like Hevo is the right solution for you!

VISIT OUR WEBSITE TO EXPLORE HEVO

Hevo Data is a No-Code Data Pipeline that offers a faster way to move data from 100+ Data Sources including 30+ Free Sources, into your Data Warehouse like Google BigQuery to be visualized in a BI tool. Hevo is fully automated and hence does not require you to code.

Want to take Hevo for a spin?

SIGN UP and experience the feature-rich Hevo suite first hand. You can also have a look at the unbeatable pricing that will help you choose the right plan for your business needs.

Share your experience with Google BigQuery Cluster Tables in the comments section below!
