Building Data Streaming Pipelines Using Quarkus Kafka Streams: 9 Easy Steps

A Data Streaming Pipeline is simply a Messaging System that executes Data Streaming Operations. The Streaming Pipeline can process data in Real-Time which eliminates the need to provision a database that holds unprocessed records.

You can use the Quarkus Kafka Streams API to stream and process data. Kafka Streams is a Client Library offering easy data processing and transformation. It assists in continuously abstracting changing Event Data Sets in Kafka clusters to support high throughput and scalability. To easily use Kafka Streams API, Quarkus provides extensions that also let you execute stream processing applications based directly on Kafka.

In this article, you will learn how to effectively develop a Data Streaming Pipeline using Quarkus Kafka Streams. In the end, you will have a solid foundation of how to apply various Kafka concepts such as Statestores, Punctuators, Processors, Windows, Joins, and Interactive Queries to build a Data Streaming Pipeline.

Table of Contents

• What is Apache Kafka?
  • Key Features of Apache Kafka
• What is Quarkus?
• What are Inner and Outer Joins in Kafka?
  • Inner Join
  • Outer Join
• How to build Data Streaming Pipelines using Quarkus Kafka Streams?
  • Quarkus Kafka Streams Step 1: Run a Kafka Cluster
  • Quarkus Kafka Streams Step 2: Create Kafka Topics
  • Quarkus Kafka Streams Step 3: Perform an Outer Join
  • Quarkus Kafka Streams Step 4: Add a Stream Processor
  • Quarkus Kafka Streams Step 5: Add a Statestore and Punctuator
  • Quarkus Kafka Streams Step 6: Run the Quarkus Streaming Application
  • Quarkus Kafka Streams Step 7: Run the Quarkus Producer Application
  • Quarkus Kafka Streams Step 8: Watch the processed-topic topic
  • Quarkus Kafka Streams Step 9: Simulate Various Use Cases
• Conclusion

What is Apache Kafka?

Kafka was originally developed at LinkedIn to address their need for Monitoring Activity Stream Data and Operational Metrics such as CPU, I/O usage, and request timings. Subsequently, in early 2011, it was Open-Sourced through the Apache Software Foundation. Apache Kafka is a Distributed Event Streaming framework that enables applications to efficiently manage large volumes of data. Its fault-tolerant, highly scalable architecture can easily manage billions of events. The Apache Kafka framework is a Java and Scala-based distributed Publish-Subscribe Messaging system that receives Data Streams from several sources and allows real-time analysis of Big Data streams.

Key Features of Apache Kafka

Apache Kafka provides the following features such as communicating through messaging and stream processing to enable real-time data storage and analysis.

• Persistent messaging: Any type of information loss cannot be tolerated in order to gain real value from big data. Apache Kafka is built with O(1) Disc Structures that deliver constant-time performance even with very high volumes of stored messages (in the TBs).
• High Scalability: Kafka’s partitioned log model distributes data over multiple servers, allowing it to extend beyond the capabilities of a single server.
• Extensibility: Kafka interfaces have been implemented with plenty of other applications. More features can be added in a matter of seconds as a result of this. Check out how you can integrate Kafka with Hadoop, GitHub, and other connectors.
• Real-time Solutions: Messages created by producer threads should be instantly available to consumer threads. This characteristic is essential in event-based systems like Complex Event Processing (CEP).
• Log Compaction: Apache Kafka always keeps the latest known value for each record key, thanks to log compaction. It just preserves the most recent version of a record while deleting previous copies with the same key. This aids in data replication across nodes and serves as a re-syncing tool for failing nodes.

What is Quarkus?

Quarkus is a powerful Full-Stack, Kubernetes-Native Java Framework developed for providing serverless application delivery. Designed for Java Virtual Machines and native compilation, it completely optimizes Java for containers and enables it to become an effective platform for Serverless, Cloud, and Kubernetes Ecosystems. Eliminating the need to check for bootstrapping a complex environment, Quarkus allows you to develop flexible applications with a useful API with little to no configuration.

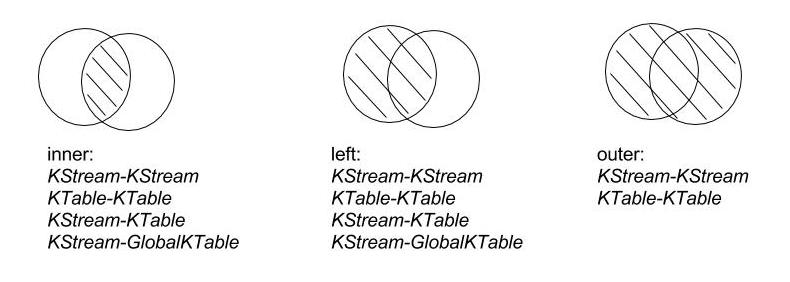

What are Inner and Outer Joins in Kafka?

When working with Relational Databases, it’s most likely that you have already come across the concept of joins where you aggregate data from two separate tables. Kafka has a similar concept where you can join streaming records from two separate Kafka Topics. Having a solid foundation of how inner and outer joins work in Kafka Streams will assist you to identify the best method of implementing your data flow pipeline.

Inner Join

Let’s imagine that you have got two distinct data streams that are arriving in two separate Kafka Topics. You can refer to one as the right topic and the one as the left topic. Now let’s also assume that there is one record arriving in the right topic that has the same key although with a different value as with another record also arriving in the left topic. Both records arrive at different times. By creating an inner join for the records with the same key, Kafka will create a new data stream with a new record.

Outer Join

When the first record arrives in the right stream, a join operation instantly creates a new record. After some time, the Outer Join Kafka stream gets data from the left stream and instantly creates another record with the values from both the right and left records. Unless explicitly stated by using the “group by” or “reduce” clauses, the outer join operation will emit three records.

With these concepts out of the way, let’s now see how you can build a data streaming pipeline using Quarkus Kafka Streams.

Prerequisites

• Ensure that you have installed Docker & Kafka CLI  in your local environment.

How to build Data Streaming Pipelines using Quarkus Kafka Streams?

For creating Data Streaming Pipeline using Quarkus Kafka Streams, follow the simple steps given below:

• Quarkus Kafka Streams Step 1: Run a Kafka Cluster
• Quarkus Kafka Streams Step 2: Create Kafka Topics
• Quarkus Kafka Streams Step 3: Perform an Outer Join
• Quarkus Kafka Streams Step 4: Add a Stream Processor
• Quarkus Kafka Streams Step 5: Add a Statestore and Punctuator
• Quarkus Kafka Streams Step 6: Run the Quarkus Streaming Application
• Quarkus Kafka Streams Step 7: Run the Quarkus Producer Application
• Quarkus Kafka Streams Step 8: Watch the processed-topic topic
• Quarkus Kafka Streams Step 9: Simulate Various Use Cases

Quarkus Kafka Streams Step 1: Run a Kafka Cluster

You can follow the simple sub-steps given below to run a Kafka Cluster:

• Step 1: Run the following command to start a Kafka cluster:

$ git clone https://github.com/wurstmeister/kafka-docker.git
$ cd kafka-docker

• Step 2: Next, open the docker-compose-single-broker.yml file and edit the following line:

KAFKA_ADVERTISED_HOST_NAME: 192.168.99.100

to

KAFKA_ADVERTISED_HOST_NAME: localhost

• Step 3: After editing and saving your changes, run the following command:

$ docker-compose -f docker-compose-single-broker.yml up -d

Quarkus Kafka Streams Step 2: Create Kafka Topics

In this step, you are going to create the following topics using the commands given below in Kafka CLI:

• right-stream-topic
• left-stream-topic
• stream-stream-outerjoin
• processed-topic

$ cd <folder location where kafka cli binaries are located>

$ ./kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic left-stream-topic

$ ./kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic right-stream-topic

$ ./kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic stream-stream-outerjoin

$ ./kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic processed-topic

Quarkus Kafka Streams Step 3: Perform an Outer Join

To begin with, you will create a class called KafkaStreaming in your Quarkus application as well as a function named startStreamStreamOuterJoin():

@RestController
public class KafkaStreaming {
    private KafkaStreams streamsOuterJoin;
    private final String LEFT_STREAM_TOPIC = "left-stream-topic";
    private final String RIGHT_STREAM_TOPIC = "right-stream-topic";
    private final String OUTER_JOIN_STREAM_OUT_TOPIC = "stream-stream-outerjoin";
    private final String PROCESSED_STREAM_OUT_TOPIC = "processed-topic";

    private final String KAFKA_APP_ID = "outerjoin";
    private final String KAFKA_SERVER_NAME = "localhost:9092";

@RequestMapping("/startstream/")
    public void startStreamStreamOuterJoin() {
        Properties props = new Properties();
        props.put(StreamsConfig.APPLICATION_ID_CONFIG, KAFKA_APP_ID);
        props.put(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, KAFKA_SERVER_NAME);
        props.put(StreamsConfig.DEFAULT_KEY_SERDE_CLASS_CONFIG, Serdes.String().getClass());
        props.put(StreamsConfig.DEFAULT_VALUE_SERDE_CLASS_CONFIG, Serdes.String().getClass());

        final StreamsBuilder builder = new StreamsBuilder();

        KStream<String, String> leftSource = builder.stream(LEFT_STREAM_TOPIC);
        KStream<String, String> rightSource = builder.stream(RIGHT_STREAM_TOPIC);

// Add the state store code later – To be done in Step 5

leftSource.outerJoin(rightSource,
                            (leftValue, rightValue) -> "left=" + leftValue + ", right=" + rightValue,
                            JoinWindows.of(Duration.ofSeconds(5)))
                        .groupByKey()
                        .reduce(((key, lastValue) -> lastValue))
                        .toStream()
                        .to(OUTER_JOIN_STREAM_OUT_TOPIC);

       final Topology topology = builder.build();
       // Add stream processing code later – To be done in Step 4
        streamsOuterJoin = new KafkaStreams(topology, props);
        streamsOuterJoin.start();
    }
}

When doing a join, you are in essence creating a new value that is combining data from two topics. If for some reason a record with a key is missing on any of the two topics, then the new value that is created from the join operation is going to be assigned the string null as the value for the missing record.

Quarkus Kafka Streams Step 4: Add a Stream Processor

Kafka has a stream processing API that you can use to process the records received by the outer join topic. You will need to write some custom logic to achieve this. To begin with, let’s define our processor, DataProcessor, and then include it in the Kafka Streaming class:

public class DataProcessor implements Processor<String, String>{
    private ProcessorContext context;

    @Override
    public void init(ProcessorContext context) {
        this.context = context;
    }

    @Override
    public void process(String key, String value) {
        if(value.contains("null")) {
            // Add code for processing missing records – To be done in Step 5
        } else {
            processRecord(key, value);

            context.forward(key, value);
        }
        context.commit();
    }

    @Override
    public void close() {
    }

    private void processRecord (String key, String value) {
        System.out.println("==== Record Processed ==== key: "+key+" and value: "+value);

    }
}

This class allows us to process records, and when the value misses a null string, it is moved on to the sink topic (i.e. processed-topic).

In the KafkaStreaming class below, you piece together the parts that define the source topic, add both the processor and the sink. After that, you can add the following code snippet to the commented out section in Step 3 (“Add stream processing code later – To be done in Step 4“)

// Read data from OUTER_JOIN_STREAM_OUT_TOPIC topic
            topology.addSource("Source", OUTER_JOIN_STREAM_OUT_TOPIC);

            // Add a stream processor – To be done in Step 5       topology.addProcessor("StateProcessor",
                                new ProcessorSupplier<String, String>()
                                        { public Processor<String, String> get() {
                                            return new DataProcessor();
                                        }},
                                "Source");

            topology.addSink("Sink", PROCESSED_STREAM_OUT_TOPIC, "StateProcessor");

Quarkus Kafka Streams Step 5: Add a StateStore and Punctuator

In the DataProcessor class, you can see that you’re only processing records that have both the left-stream and right-stream key values. But you also need to process other records that only have one of the values. However, we must introduce a delay before processing these records because sometimes some values arrive at different time windows and you don’t want to have a scenario where you’re processing records prematurely.

For this, you are going to use the Kafka StateStore for holding incoming records, tracking rolling aggregates, and de-duplication. You will use punctuators to process the records in your StateStore that have missing values. To add the Kafka StateStore in the KafkaStreaming

class, place the following code snippet where you see the comment “Add the state store code later – To be done in Step 5“:

 Map<String, String> changelogConfig = newHashMap<>();

        StoreBuilder<KeyValueStore<String, String>> stateStore = Stores.keyValueStoreBuilder(
                                                                    Stores.persistentKeyValueStore(STORE_NAME),
                                                                    Serdes.String(),
                                                                    Serdes.String())
                                                                 .withLoggingEnabled(changelogConfig);
        topology.addStateStore(stateStore, "StateProcessor");

With this snippet, you have defined a Kafka state store that stores the key and value of a record and enabled logging. Now edit the process() function so that it can place any records with null values in the State Store. Place this code snippet in your KafkaStreaming class where you’ll find the comment “Add code for processing missing records – To be done in Step 5“:

if(value.contains("null")) {
            if (kvStore.get(key) != null) {
                // then the other value arrived first
                // process the record
                String newvalue = value.concat(" ").concat(kvStore.get(key));
                process(key, newvalue);

                // remove the entry from the statestore based on which one arrived first
                kvStore.delete(key);
                context.forward(key, newvalue);
            } else {

                // add to state store if there are null values
                System.out.println("Incomplete value: "+value+" detected. Putting into statestore for later processing");
                kvStore.put(key, value);
            }
        }

The next thing you need to do is to add the punctuator to the processor you have just defined. To achieve this, update the DataProcessor’s init() method to look as follows:

private KeyValueStore<String, String> kvStore;

    @Override
    public void init(ProcessorContext context) {
        this.context = context;
        kvStore = (KeyValueStore) context.getStateStore(STORE_NAME);

        // schedule a punctuate() method in 50 seconds intervals
        this.context.schedule(Duration.ofSeconds(50), PunctuationType.WALL_CLOCK_TIME,
                                new Punctuator(){
                                    @Override
                                    public void punctuate(long timestamp) {
                                        System.out.println("Scheduled punctuator called at "+timestamp);
                                        KeyValueIterator<String, String> iter = kvStore.all();
                                        while (iter.hasNext()) {
                                            KeyValue<String, String> entry = iter.next();
                                            System.out.println("  Processed key: "+entry.key+" and value: "+entry.value+" and sending to processed-topic topic");
                                            context.forward(entry.key, entry.value.toString());
                                            kvStore.put(entry.key, null);
                                        }
                                        iter.close();
                                    // commit the progress
                                    context.commit();
                                    }
                                }
        );
    }

You’re done building the streaming pipeline. To get the entire source code, clone this Git repository.

Quarkus Kafka Streams Step 6: Run the Quarkus Streaming Application

Open your terminal and run the following bash commands to start the streaming application.

cd data-streaming-kafka-quarkus/quarkus-kafka-streaming

$ ./mvnw compile quarkus:dev

curl localhost:8080/startstream

Quarkus Kafka Streams Step 7: Run the Quarkus Producer Application

In a new terminal, execute the following commands:

$ cd data-streaming-kafka-quarkus/quarkus-kafka-producer
$ ./mvnw compile quarkus:dev

Quarkus Kafka Streams Step 8: Watch the processed-topic topic

$ cd <folder location where kafka cli binaries are located>
$ ./kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic processed-topic --property print.key=true --property print.timestamp=true

Quarkus Kafka Streams Step 9: Simulate Various Use Cases

• Use Case 1: Send a few records to the right-stream-topic as well as the left-stream-topic.

The left-stream-topic is going to be missing some records. The punctuator is going to process the records that are held in the state store.

$ curl localhost:8082/sendfewrecords

• Use Case 2: Send one record to left-stream-topic only.

$ curl localhost:8082/sendoneleftrecord

To view the records held in the Kafka StateStore but haven’t been processed, run the following command:

$ curl localhost:8080/storedata

• Use Case 3: Send 100000 records to the two Kafka topics.

$ curl localhost:8082/sendmanyrecords

Conclusion

In this article, you have learned how to effectively develop and run a Data Streaming Pipeline using Quarkus Kafka Streams. You can now use the data streaming pipeline that you have built to process records in Real-Time, store data without having to rely on a database or cache, and build a modern application using an event-driven architecture.
