Superset BigQuery Connection: 11 Easy Steps

• March 17th, 2022

superset bigquery - featured image

BigQuery is a leading provider of Data Warehousing storage services from the stable of Google. It is known to be robust and can store petabytes of data. It offers many features and is highly functional in various use cases. It provides tools for storing data from various sources and then efficiently retrieving them. By connecting Superset BigQuery together you can visualize the retrieved data as well.

Apache Superset is an open-source data visualization platform that supports the processing of petabyte-scale data. It is flexible and is efficient with larger amounts of data when compared to its competitors.

This article gives a comprehensive guide on connecting Superset Bigquery together.

Table of Contents

What is Superset?

superset bigquery: superset logo
Image Source: upload.wikimedia.org

Apache Superset is a BI (Business Intelligence) tool that is very capable of processing large amounts of data and visualizing it efficiently using graphs and charts. It also provides the provision for a web application that can be used to generate reports on the go and aid business strategy.

Major companies like Udemy, Airbnb, Lyft, etc. use Apache Superset. The tool being an open-source solution provides flexibility as it has large community support and it is easily accessible by developers. It also provides the selection of various parameters such as Webserver, Metadata Database engine, Caching layer, and many more for the BI tool optimization.

Apache Superset is a cloud-based system that is compatible with Nginx, Gunicorn, Apache which are all examples of Webservers. It is also compatible with MySQL, MariaDB, PostgreSQL which are examples of Metadata Database Engines. Redis, Memcached are examples of Caching Layers. Results Backend category has options like Memcached, S3, and Redis while Message Queue has options like SQS, RabbitMQ, and many more.

The Features of Apache Superset

  • Effective and Efficient Performance: It is very fast but at the same time accurate when processing large amounts of data. It utilizes a no-code environment that is simple to use and can also be used with SQL IDE for data exploration. It can generate visualizations from simple pie charts to complex geospatial charts.
  • User-friendly Interface: It provides complex functionality with ease of use. It provides a simple user interface and requires very few prerequisites. This brings a positive user experience to the table.
  • Excellent Visualization System: The tool provides wide options for high-quality visualization making it highly creative and flexible. This makes the data exploration very informative and interesting.
  • Scalability: Apache Superset is highly scalable since it allows the data of different sizes from various sources in an optimal way.
  • Wide Range of Database Support: Apache Superset is compatible with many databases like Amazon Redshift, Google BigQuery, Snowflake, Firebird, Oracle Database, and many more. Also being an open-source platform provides it with a lot of support for integrations with other platforms.

Simplify BigQuery ETL with Hevo’s No-code Data Pipeline

Hevo Data, a No-code Data Pipeline helps to load data from any data source such as Databases, SaaS applications, Cloud Storage, SDKs, and Streaming Services and simplifies the ETL process. It supports 100+ data sources like Superset (including 40+ free data sources) and is a 3-step process by just selecting the data source, providing valid credentials, and choosing the destination like BigQuery. Hevo not only loads the data onto the desired Data Warehouse/destination but also enriches the data and transforms it into an analysis-ready form without having to write a single line of code.

GET STARTED WITH HEVO FOR FREE[/hevoButton]

Its completely automated pipeline offers data to be delivered in real-time without any loss from source to destination. Its fault-tolerant and scalable architecture ensure that the data is handled in a secure, consistent manner with zero data loss and supports different forms of data. The solutions provided are consistent and work with different BI tools as well.

Check out why Hevo is the Best:

  • Secure: Hevo has a fault-tolerant architecture that ensures that the data is handled in a secure, consistent manner with zero data loss.
  • Schema Management: Hevo takes away the tedious task of schema management & automatically detects the schema of incoming data and maps it to the destination schema.
  • Minimal Learning: Hevo, with its simple and interactive UI, is extremely simple for new customers to work on and perform operations.
  • Hevo Is Built To Scale: As the number of sources and the volume of your data grows, Hevo scales horizontally, handling millions of records per minute with very little latency.
  • Incremental Data Load: Hevo allows the transfer of data that has been modified in real-time. This ensures efficient utilization of bandwidth on both ends.
  • Live Support: The Hevo team is available round the clock to extend exceptional support to its customers through chat, email, and support calls.
  • Live Monitoring: Hevo allows you to monitor the data flow and check where your data is at a particular point in time.
SIGN UP HERE FOR A 14-DAY FREE TRIAL

What is BigQuery?

superset bigquery: bigquery logo
Image Source: 47billion.com

BigQuery is a flexible, fast, and robust data warehouse platform from the stable of Google. This makes it readily available to be connected with other tools that Google Platform provides. It follows a serverless model making it cost-effective which allows for user-specific pricing based on usage. It also leverages its integrated query engine for performing analytics which when combined with its serverless model can process terabytes of data in seconds.

The study shows that BigQuery is about 26%-35% cheaper than its rivals under similar workloads making the total cost of ownership lower. Since it follows a serverless approach, there is no requirement to manage and configure complex infrastructure providing a lot more flexibility to gain insights using standard SQL. It also provides flexible pricing ranging from flat-rate options to on-demand ones.

Google’s BigQuery column-based structure allows handling large amounts of data without compromising on the speed of processing that is associated with the handling of data. The column-based storage is highly capable of processing relevant columns resulting in faster response times and better use of available resources. Columnar storage is also beneficial for analytical tools to generate insights.

Key Features of Google BigQuery

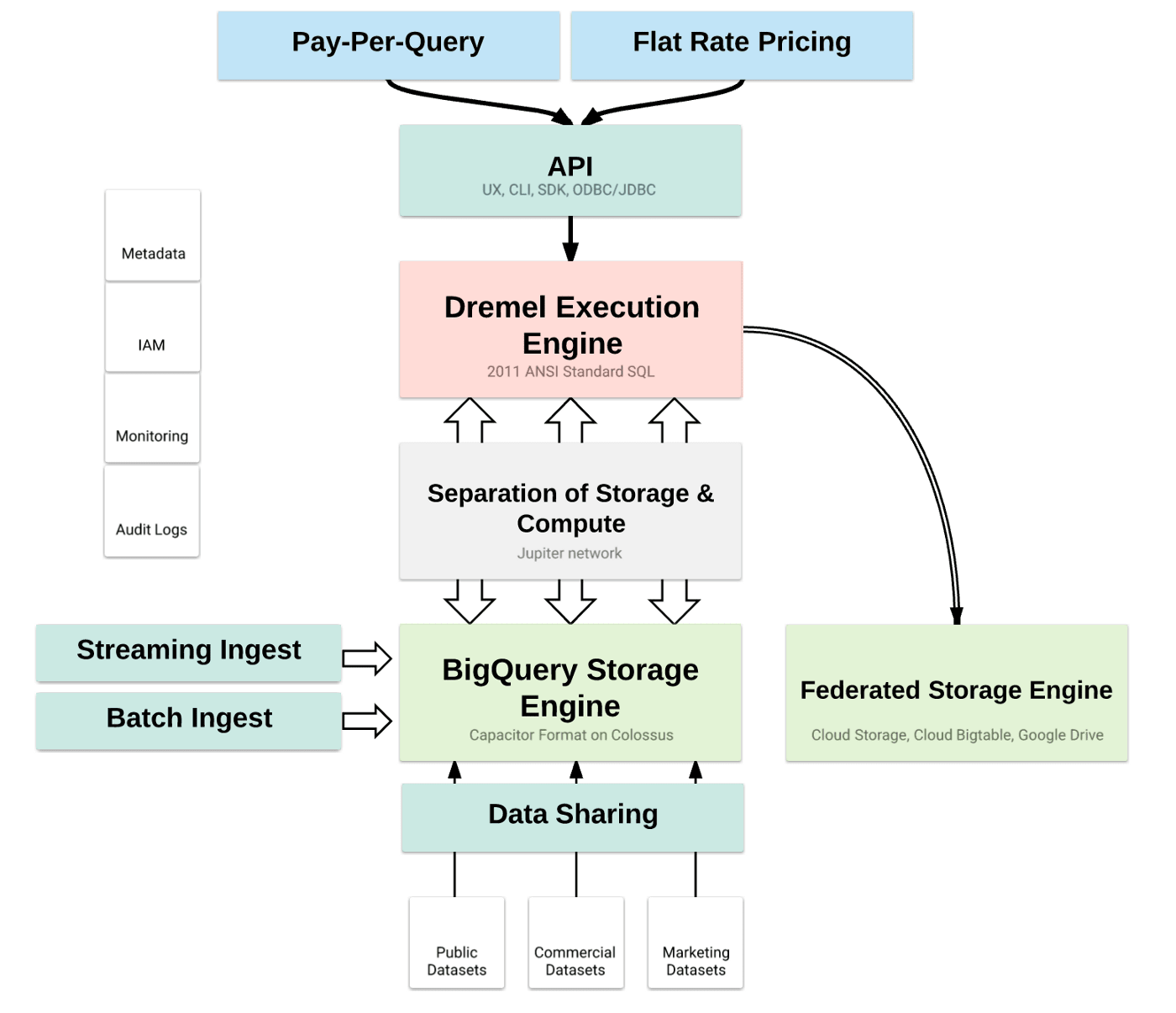

superset bigquery: bigquery features and architecture
Image Source: miro.medium.com

Here are a few key features of Google BigQuery:

  • Serverless Services: When setting up a data warehouse, an organization needs to specify the server hardware, the technical requirements, the calculation speed required, ensure proper administration to maintain the data warehouse along with proper reliability security performance, and many more factors. These all can be avoided in Google BigQuery since the serverless approach distributes the task at the different machine and run them parallelly. Also being a cloud solution allows the user to focus efforts on server provisioning rather than infrastructure providing more time to generate and look into the insights.
  • SQL and programming language support: Standard SQL is supported by BigQuery. It also has the provision for libraries that can be used to create applications using python, C#, java. PHP and many more.
  • Tree Architecture: Google BigQuery follows a tree architecture, that can be extended to thousands of computers and creates an execution tree that can structure calculations. The incoming requests are processed by the root server and forwarded to the mixer which is nothing but the branches of the structure. These mixers then modify the requests to the slot which is the leaf node of the structure. Slots work in parallel and are the basic units that handle the request by reading and processing the data. The results are accumulated and sent back to the root which outputs the result of the query. and are responsible for processing  Google BigQuery and Dremel can easily be extended
  • Multiple data types: Data types like Integer, Float, Boolean, Strings are all supported by Google BigQuery.
  • Security: The Data in Google BigQuery is automatically encrypted when the transfer from storage takes place. It also isolates the Jobs so that it can secure multi-user activity. The Security of other Google Cloud Platforms is integrated into BigQuery to provide enterprises with a big picture of security. Access Management (IAM) can set permissions for users to access tables, views, and, records. Users can also share Google Cloud Identity and Access Management(IAM).

Steps to Connect Superset BigQuery

Superset BigQuery connection: Prerequisites:

  1. Before proceeding to connect Superset BigQuery, you need to follow the steps provided in Google Cloud Page, to provide the Authentication.
  2. Install pybigquery
  1. Download your Google Cloud authorization JSON key file
  2. From your terminal instance, set GOOGLE_APPLICATION_CREDENTIALS env. var to the path of your JSON key file

Superset BigQuery connection: Steps:

To Connect Superset BigQuery for querying BigQuery Datasets, we will use the pybigquery SQLAlchemy plugin.

  1. Download the pybigquery plugin for connecting Superset BigQuery.
  2. Use this guide to install new database drivers in docker for installing plugins.
  3. Use the following command to install pybigquery for the Superset BigQuery connection.
echo "pybigquery">> ./docker/requirements-local.txt
  1. This will boot up the Superset services and after all the images are rebuilt, go to the sources tab and select databases. This will be sued to select Bigquery as a database for Superset BigQuery connection.

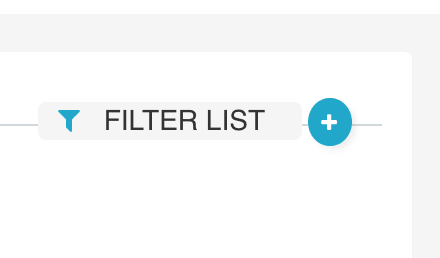

  2. In the navigation bar click on the + button that is present next to Filter List. This will open the page where details of the database are required for the Superset BigQuery connection.
superset bigquery: New Database button
Image Source: images.ctfassets.net
  1. On the next page fill out the details of the database
    1. Database: This is the name of the database. Select a name that is easy to remember

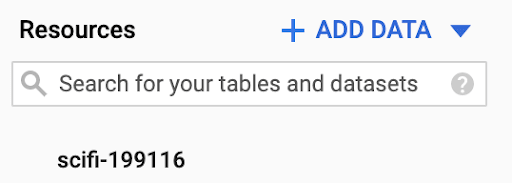

    2. SQLAlchemy URL: The SQLAlchemy URI for BigQuery looks like: bigquery://{project_id}. To find your BigQuery project_id, navigate back to the BigQuery console and you’ll find it under Resources.
superset bigquery: resources section for Project ID
Image Source: images.ctfassets.net

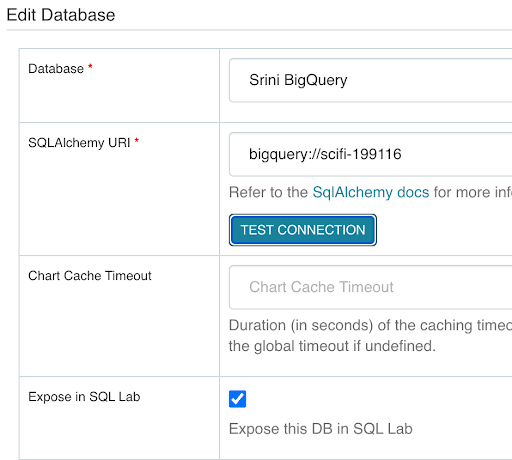

  1. Make sure to tick the option Expose in SQL Lab for Superset BigQuery connection.
superset bigquery: parameters for Successful Database
Image Source: images.ctfassets.net
  1. In the Extra field add the BigQuery credentials JSON file structured in the given format. This will ensure the Superset BigQuery connection.
 {
          "credentials_info": {
            <DATA_FROM_CREDENTIALS_FILE>
          }
        }
   Here's a more tangible example (obviously you'd replace the blanks with data from your JSON file):
       {
          "credentials_info": {
            "type": "service_account",
            "project_id": "_____",
            "private_key_id": "____",
            "private_key": "-----BEGIN PRIVATE KEY-----
            n____
            ______
            END PRIVATE KEY-----n",
            "client_email": "___",
            "client_id": "____",
            "auth_uri": "____",
            "token_uri": "____",
            "auth_provider_x509_cert_url": "____",
            "client_x509_cert_url": "____"
          }
        }
  1. After all the fields are filled, click the Test Connection button. This will test the Superset Bigquery connection we just set up.
  2. This will test if your Superset instance in talking to BigQuery Project in the Superset BigQuery connection.

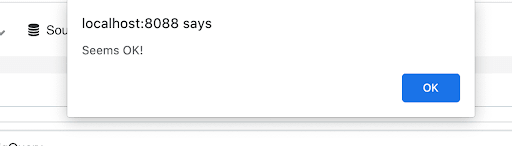

superset bigquery: Successful Connection
Image Source: images.ctfassets.net
  1. If the OK sign comes, this represents that the connection of Superset BigQuery is established.

Conclusion

BigQuery is a flexible, easy-to-use, and cost-effective data warehouse. This is used by many enterprises to store large amounts of data. BigQuery is very efficient in processing queries for these data and is backed by Google means it has wide support, provides better connections to others, and is highly secure. Apache Superset is a Business Intelligence tool that is known for its efficiency in processing petabytes scale data. It is highly efficient in visualizing large amounts of data that is not possible in regular BI tools. Connecting Superset BigQuery allows utilizing the vast amounts of data stored in BigQuery efficiently. This article gives a step-by-step guide on Superset BigQuery Connection.

BigQuery is a trusted Data Warehouse that lots of companies use to store data since it provides many features at an affordable package. Even though it supports different sources like Superset transferring data from sources into BigQuery is a very hectic task. The Automated data pipeline helps in solving this issue and this is where Hevo comes into the picture. Hevo Data is a No-code Data Pipeline and has awesome 100+ pre-built Integrations that you can choose from.

visit our website to explore hevo

Hevo can help you integrate your data from numerous sources and load them into a destination to Analyze real-time data with a BI tool such as Tableau. It will make your life easier and data migration hassle-free. It is user-friendly, reliable, and secure.

SIGN UP for a 14-day free trial and see the difference!

Share your experience of learning about the Superset BigQuery Connection in the comments section below.
